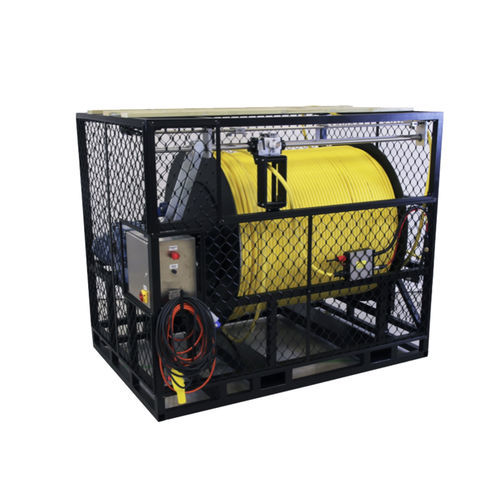

Cable winch 22/2000

for aquaculture

■Easy to operate ■Robust design ■Require a minimum of maintenance ■Made in Norway Technical data Construction:All welded in corrosion resistant aluminum, frame and cable drum Overall dimensions:Width 2160 mm Height 1800 mm Length 1450 mm Drum dimension:Core length 1330 mm Core diameter 700 mm Flange diameter 1300 mm Cable capacity:2000 meter of 22,7 mm cable Weight:670 kg. excl. cable Cable pull:Inner layer 3335 N- theoretical Outer layer 1790 N- theoretical Cable speed:Inner layer, 39 m/min Outer layer, 72 m/min Spooling system:Stainless steel shaft, belt driven with release mechanism. Cable dia. adjustable from 1 mm to 25 mm in 50 steps Electric motor:3000W 3 ph. 1420 o/min. Electric input:Three phase 230 V AC 50 Hz. 16 A Controls:Frequency inverter, Manual control with 15 meters cable. Up, down and emergency stop. Potentiometer speed control. Slip ring:Focal 180 Brake:Automatic Temperature rating:-15º C to +65 º C
