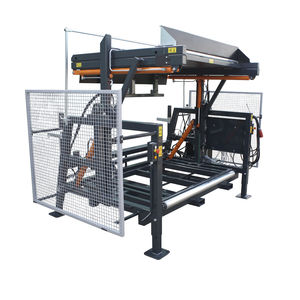

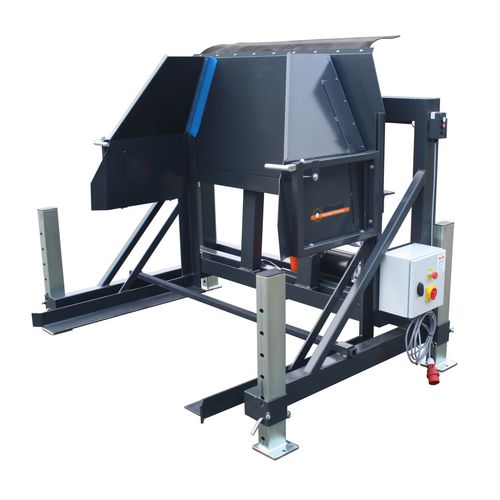

Box tipper Z 160

Box tippers are designed to feed processing lines or machines. The principle is that a box is placed in the machine, which then slowly tilts the box so that a hopper or elevator is filled. TYPES AND SPECIFICATIONS. Z 160 Width of boxes:1600 mm Max height:3480 mm Height in lower position:1730 mm Width:2130 mm Max angle:140° Hydraulic pressure:180 bar Options Cage Optionally it is possible to opt for a cage around the machine, to ensure safety for the staff. The cage is a very effective safety measure. Dosing sensor In some cases, it is not possible for the box tipper to empty a box at once. For these situations, Allround VP offers the dosing sensor. This dosing sensor detects when the produce piles up, and when the machine will be able to empty the bunker again. Stainless steel Allround VP is able to make machines from Stainless Steel on demand. Two cylinders Optionally for the Z160; it is possible to opt for two cylinders on the machine instead of one, to increase the lifting power of the machine. Remote control
