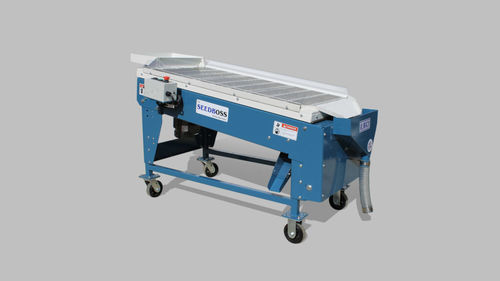

Seed sorting machine Seedboss

mobile

Product Overview The ALMACO Seedboss is designed for multi-crop seed sizing using an orbital motion across two sets of screens. Counterweighted to reduce vibration, the unit operates quietly while conveying seed gently across the bed. Targeted seed fractions are separated from other material. Available as a stand-alone unit or integrated into a seed processing line.

Features

• Operational sound level comparable to the interior of a passenger car
• Wide processing bed for fast, gentle handling of seed
• Counterweighted design to minimize vibration
• Discard streams combined into a single outlet
• Interchangeable sift and scalp screens for multiple crop combinations

Specifications
Dimensions
Width: 27"
Length: 70"
Height: 40.5"
Weight: 340 lbs

Operational Sound Levels
84 Decibels

Processing Capability
Clean grain per hour: 185–200 lbs

Power Type
1/4 HP 110V Electric Motor, 60 Hz
1/3 HP 220V Electric Motor, 50 Hz
1/4 HP 220V Electric Motor, 60 Hz

Discard Handling Choice
Sift: Front or Side
Scalp: Funnel for Conveyor/Bucket or Venturi Funnel

Screen Sizes
Sift
8/64, 9/64, 10/64, 11/64, 12/64, 14/64, 15/64, 16/64, 17/64, 18/64, 19/64

Scalp
17/64, 18/64, 20/64, 21/64, 22/64, 23/64, 24/64, 25/64, 26/64, 27/64, 28/64

Technical specifications

• Width: 27"
• Length: 70"
• Height: 40.5"
• Weight: 340 lbs
• Operational Sound Level: 84 Decibels
• Clean Grain Per Hour: 185–200 lbs
• Power Options: 1/4 HP 110V 60 Hz; 1/3 HP 220V 50 Hz; 1/4 HP 220V 60 Hz
• Discard Handling: Sift (Front or Side); Scalp (Funnel for Conveyor/Bucket or Venturi Funnel)
• Available Sift Sizes: 8/64, 9/64, 10/64, 11/64, 12/64, 14/64, 15/64, 16/64, 17/64, 18/64, 19/64
• Available Scalp Sizes: 17/64, 18/64, 20/64, 21/64, 22/64, 23/64, 24/64, 25/64, 26/64, 27/64, 28/64
