Weight data-logger D1 Data Collection Unit

cost-effectivehigh-accuracy

Overview
D1 Data Collection Unit from ALMACO provides accurate, real-time harvest yield data including test weight, shell weight and moisture. Designed for continuous field use, the D1 supports a cost-effective upgrade from LRX without changes to existing weight systems, load cells or moisture blades.

Multi-crop capability

• Capture multi-crop harvest data from a single solution.
• Measured crops include corn, soybeans, wheat, sorghum, canola, rice, sunflower and more.

Features

• Durable design: Operates in wet, dusty and corrosive environments; no need to remove the unit for transport or overnight storage. Operating range: up to 185° F (85° C) and down to -40° F (-40° C).
• Standardized architecture: No internal battery reduces maintenance and risk of data loss due to power failure. Compatible with electric and pneumatic actuators and fits as a replacement for similar bucket systems.
• Multi-crop versatility: Measures yield data for virtually all crop types with consistent accuracy and precision.

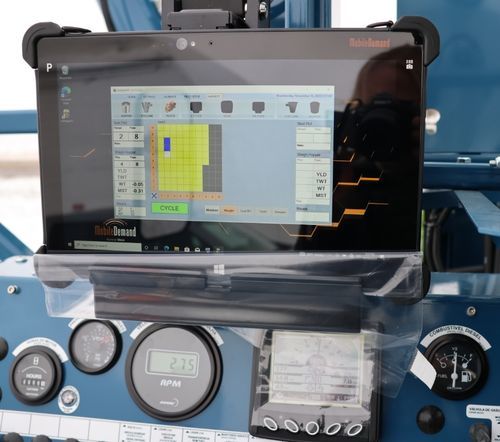

• Easy integration and centralized visibility: Controlled from existing Vantage HD combine software; no additional display or external controls required.
• Versatile equipment compatibility: Suitable for plot combines, seed processing lines, individual threshers and other plot harvesting solutions; compatible with ALMACO ASP and APx packagers.
• Intuitive user interface: Simple navigation with built-in diagnostics to support uptime.
• Simple calibration: ALMACO calibration supports any size moisture blade, including large blades, with step-by-step calibration guides in the system.
• Dependable access to curves: Moisture and weight curves are stored in Vantage HD software rather than in the D1 control box, allowing curve transfer between combines.

Compatible with

• R2 Twin-Plot Rotary Combine
• R1 Single-Plot Rotary Combine
• Harvest Pro – HP5
• SPC20
• ASP Packager
• APx Packager

Technical specifications

• Harvest Weight: Multiple sample sizes; multiple hopper sizes; multiple weight options
• Test Weight: 95% of samples at +/-0.80 lb/bu
• Cycle Time: 6–10 seconds for 20 foot dual harvest plots
• Moisture: 0–25% moisture at +/-0.50%
  25–30% at +/-1.00%
  30–35% at +/-1.50%
• Stabilization Time: Initial reading speed of ~1.80 seconds
