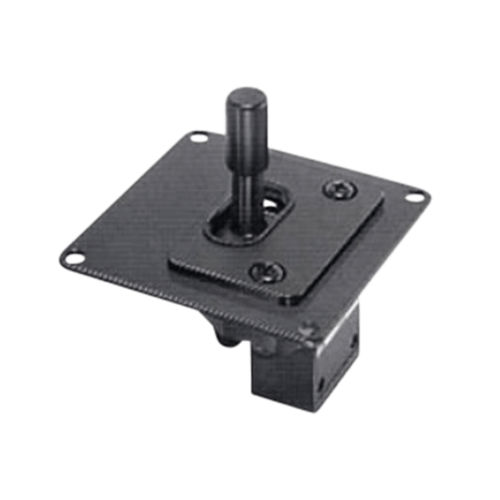

Finger operated joystick 30JL

finger operated joystick
finger operated joystick
Add to favorites
Compare this product


Characteristics

Type
finger operated

Description

Low-cost version of 1-dimensional coordinate type joystick controller About the Finger Joystick 30JL Low-cost version of 1-dimensional coordinate type joystick controller and no other dimensional coordinate is available. Spring return device is fitted as standard version. Features 30JL -Low-cost -1-dimensional coordinate -With conductive plastic element -Protection IP65 Applications for 30JL -Medical instruments -Industrial vehicles -Robot operations -Crane operations Specifications Controlling range of operating lever ±20º~±25º from center position. Operating force Approx.1N~2.5N (100gf~250gf) Operating temperature range -20ºC~+60ºC Vibration 10~55Hz 98m/s² Shock 294m/s² Life expectancy Approx. 2.000.000 operations Mass Approx. 100g Potentiometer mounted Special conductive plastic resistive element is exclusively used for 30JL series Total resistance value 10KΩ±20% Independent linearity tolerance ±5% Electrical rotating angle Approx 40º Rated power 0.1W Output smoothness Below 0.2% against input voltage Contact resistance variation Blow 6% C.R.V. Resolution Essentially infinite Dielectric strength 1 minute at 500V.A.C. Insulation resistance Over 1.000MΩ at 500VDC

Catalogs

No catalogs are available for this product.

See all of Althen Sensors and Controls‘s catalogs
