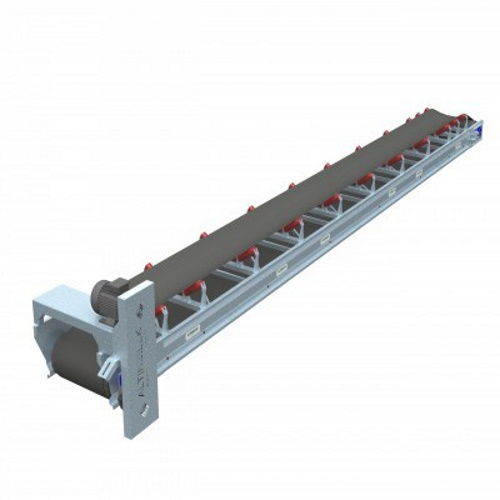

Grain conveyor BK 400-500-650
beltroller

grain conveyor
grain conveyor
grain conveyor
grain conveyor
grain conveyor
grain conveyor
grain conveyor
Add to favorites
Compare this product


Characteristics

Applications
for grain
Technology
belt, roller

Description

Medium capacity conveyors. Up to 400 m³/h ALTINBILEK Closed Belt Conveyor ensures the horizontal or sloped conveyance of the product to be transported. The conveyance is performed via the belt traveling on the conveyor roller. They are manufactured as one-roller, two-roller, or three-roller system, depending on the product to be conveyed and the capacity. Oneroller systems are mainly used to convey packages and sacks. Tworoller and three-roller systems are suitable for the products in powder and granular form at high capacity. Drive drum is rubber coated to prevent skidding. Weighted belt-tensioning system is incorporated in long conveyance distances. Impact absorbing rollers are used at the feeding point. The standard production is painted steel, galvanized steel or optional stainless steel. FEATURES •Completely Bolted Joint •Easy-to-assemble Body Structure •Maximum Endurance •High-strength EP Belt DRIVE SYSTEMS •Drive System Mountable at Right or Left •Power Transmission with Belt-Pulley Connection (Standard) •Hollow shaft for reducer motor (Optional) •Full shaft for reducer motor and Coupling (Optional) •Industrial Reducer with Auxiliary Drive (Optional)
