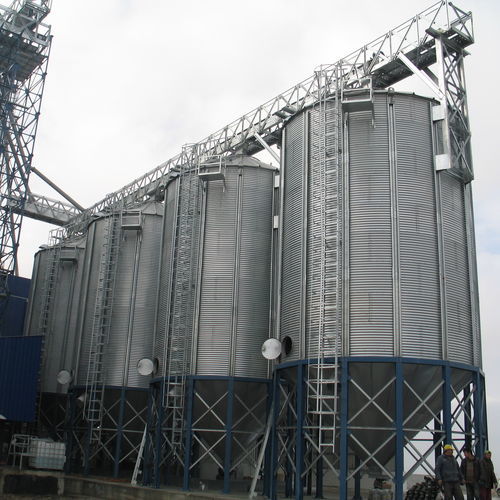

Grain silo

for food productssteelcone-bottom

Product overview
Conical-bottom steel silo systems designed for complete gravity discharge and hygienic storage of seeds, feed and granular or powder products. Available in multiple capacities and diameters with conical angles selectable per product requirements. Constructed with S350GD steel and Magnelis (ZM310) coating for increased corrosion resistance.

Key highlights

• 100% gravity discharge for complete emptying
• Conical angles: 45° / 50° / 60°
• Capacity range: 5 - 500 tons
• Magnelis-coated S350GD+ZM structure (ZM310)
• Freestanding elevated conical base allowing discharge conveyors or vehicles below
• Optional: ventilation, heating, temperature measurement and level sensors

Features

• Conical base geometry optimized per product to prevent residue
• Seed compatibility preserving germination and controlled storage conditions
• Complete gravity emptying leaving no product residue
• Modular design with 4–16 support feet depending on diameter
• Bolt quality: class 8.8 galvanized

Technical specifications
Capacity range: 5 - 500 tons
Diameter range: 2.73 m - 12.52 m
Conical base angle: 45° / 50° / 60°
Body material: S350GD+ZM Magnelis steel
Magnelis coating: ZM310 (Zn-Al-Mg)
Bolt quality: 8.8 galvanized
Number of feet: 4 - 16 (depending on diameter)
Certificates: CE, ISO 9001, TSE

Applications

• Seed storage: hygienic controlled storage for certified seeds
• Feed industry: compound feed and raw material storage
• Chemical industry: granular and powder products
• Food industry: sugar, salt, spices and granulated food products

Advantages

• Zero product residue reduces waste and contamination risk
• Hygienic storage suitable for high-value products
• Easy internal cleaning and reduced maintenance time
• Flexible conical angle options to match product flow characteristics
