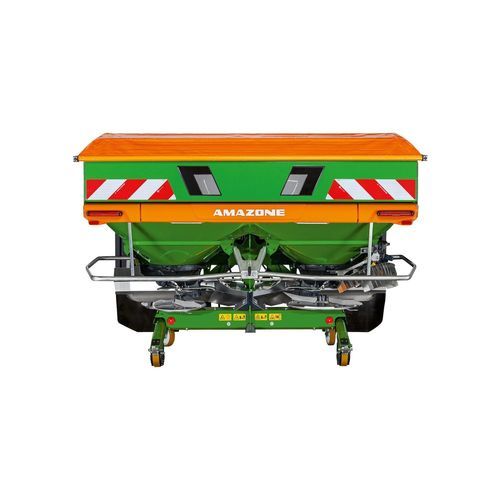

Mounted fertilizer spreader ZA-V series

liquidsolidISOBUS

Overview
The ZA‑V mounted fertiliser spreader is designed for high-speed, large‑area application with hopper capacities from 1,400 to 4,200 L. It achieves high work rates with spreading capacities up to 390 kg/min and adjustable working widths up to 36 m, making it suitable for professional arable and mixed farming operations.

Product highlights

• High working speed: up to 30 km/h for efficient large‑area application.
• High spreading capacity: up to 390 kg/min to maximise throughput.
• Adjustable working width: up to 36 m for wide coverage and flexible application patterns.
• ISOBUS compatibility for seamless machine integration and control.
• Profis weighing system: 200 Hz high‑frequency weighing for precise application rates; easy operation by entering rate and driving off.
• Limiter V and Electric Limiter V+: advanced border spreading systems with cab‑operated switching.
• Multiple drive options: hydraulic or electric spreader drives; mechanical and hydraulic options for disc drives.
• Operator convenience: QuickSet blade adjustment, mySpreader App integration and EasySet features for rapid setup and up‑to‑date fertiliser data.
• Deep‑drawn base hopper: smooth interior without edges or weld seams for easy cleaning and reduced residue.
• Robust surface protection: cathodic dip priming plus powder coating for extended service life.

Functional & optional systems

• Operation/controls: Hydraulic shutter actuation | EasySet 2 in‑cab terminal | AmaSpread 2 in‑cab terminal | ISOBUS.
• Border spreading: Limiter V / Limiter V+ systems (electric option available).
• Weighing & metering: Profis weighing system for precise metering; high‑frequency weighing (200 Hz).
• Spreader unit/drives: Mechanical or hydraulic drive options; multiple disc configurations (2 | 6 | 8 | 16).
• Integration: ISOBUS compatibility and support for in‑cab terminals and the mySpreader App.

Illustrative icons / quick facts

• Working width: 15 m to 36 m.
• Hopper capacity: 1,400 L to 4,200 L.
• Disc configurations: 2 | 6 | 8 | 16.
• Spreader drive: Mechanical | Hydraulic.
• Control options: Hydraulic shutter actuation; EasySet 2; AmaSpread 2; ISOBUS.

Technical specifications

• Hopper capacity range: 1,400 – 4,200 L.
• Maximum working speed: up to 30 km/h.
• Maximum application rate: up to 390 kg/min.
• Maximum working width: up to 36 m.
• Weighing system: Profis weighing system, 200 Hz.
• Border spreading: Limiter V and Electric Limiter V+ options.
• Spreader unit drive: Mechanical or hydraulic drive options.
• Disc configurations available: 2, 6, 8, 16 (depending on model/option).
• Base hopper design: deep‑drawn (no edges or weld seams) for easy cleaning.
• Surface protection: cathodic dip priming and powder coating for enhanced durability.
