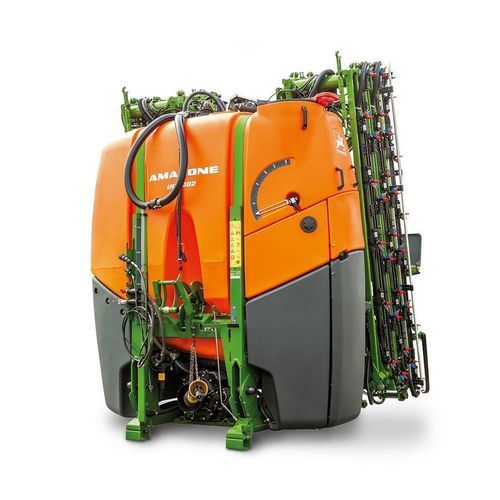

Mounted sprayer UF 02

electric

Product overview
The UF 02 mounted sprayer is offered with tank capacities from 1,000 to 2,000 L and boom working widths from 12 to 30 m. Designed for compactness and easy operation on tractors, the UF 02 can be combined with the FT front tank to increase total system capacity up to 3,500 L. The machine delivers high manoeuvrability and simple mounting/demounting for efficient field work. The AMAZONE UF 01 is available in smaller boom widths (12–24 m) and tank capacities of 900 or 1,200 L.

Your benefits at a glance

• Lifting-force-optimised design with a low centre of gravity for stable tractor handling
• Quick coupling system and practical parking aid for fast mounting and demounting
• SmartCenter: operating packages from intuitive Standard-Pack to Comfort-Pack with TwinTerminal 3.0
• High-performance 60 L induction bowl with up to 150 L/min suction for fast filling and homogeneous mixing
• Multi-facet spring suspension for a smooth boom ride and consistent application quality
• DUS and DUS pro recirculation systems for continuous spray liquid circulation
• AmaSwitch plus electric individual nozzle control enabling 50 cm part-width sections
• Automatic cleaning programme for reliable cleaning under varying conditions

Key features (icons)

• Working widths: 21–48 m (icon reference on page)
• Tank volumes: 1000–2000 L (up to 3,500 L with FT front tank)
• Part-width sections: up to 60 sections
• Pump capacity options: 150, 200, 250 or 300 L/min

Notes
Compact, manoeuvrable tractor-mounted sprayer. FT front tank option increases total system capacity up to 3,500 L.

Technical specifications

• Tank capacity: 1,000–2,000 L (with FT front tank up to 3,500 L)
• Boom working widths: 12–30 m (product text); icon references indicate 21–48 m
• Induction bowl: 60 L capacity; suction up to 150 L/min
• Pump capacities: 150, 200, 250 or 300 L/min
• Part-width control: AmaSwitch plus electric individual nozzle control; 50 cm section width (benefits) / up to 60 sections (icon)
• Suspension: multi-facet spring suspension for improved boom ride
• Recirculation systems: DUS and DUS pro for continuous circulation of spray liquid
• Operating systems: Standard-Pack up to Comfort-Pack with TwinTerminal 3.0
