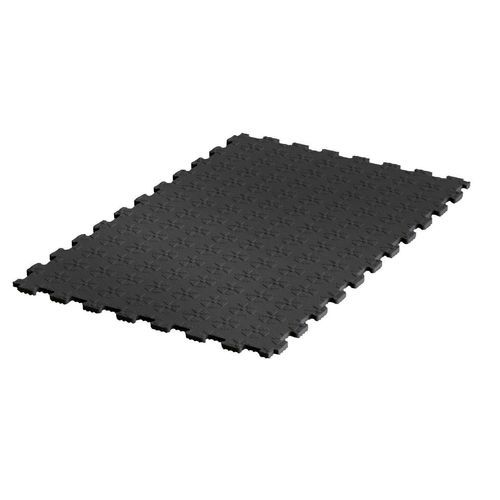

Rubber cow mattress Propel

cow comfortdairy barncow hygiene

Product overview
Propel is a 1" (25 mm) dairy stall mat engineered for traction, drainage and progressive cushioning in high‑use bovine areas.

Suitable For:

• Upper holding areas
• Crossovers
• Parlour decks
• Rotary platforms
• Walkways
• Travel lanes

Dimensions & thickness (as indicated on page)

• Thickness: 1" (25 mm) — indicated in product header
• Alternative thickness noted in Specifications: 13/16" (21 mm)
• Size: 72" (1.83 m) x 48" (1.22 m)

Features

• 1" thickness balancing durability and comfort within the product line.
• Hexagonal traction cells distribute grip under each hoof to align with natural hoof geometry.
• Multi‑level traction elements in each cell activate progressively for reliable footing on wet or manure‑coated surfaces.
• Voids and channels spaced ≈100 mm move liquids off the surface quickly to reduce manual wash‑down.
• Underside arches and rounded dots form a progressive cushioning system that compresses under load without bottoming out for a full‑size cow.
• Reinforced ribbed perimeter secures edges and protects interlocks from hoof strikes and pressure washing, keeping mats flat and connected.
• Custom cut and interlocked at a North American facility to fit barn layouts.

Key benefits

• 7‑point hoof contact for improved traction and reduced slips.
• Reinforced interlocks and ribs prevent mat movement under load.
• Multi‑channel drainage improves hygiene by accelerating liquid removal.
• 7.9 mm deformation (cushioning) tuned for cow comfort.

Cleaning & maintenance

• Compatible with flush systems, pressure washers, skid steer/loader or tractor‑assisted cleaning.
• Voids and channels reduce dwell time of manure and liquids on the surface.

Technical specifications

• Thickness (page header): 1" (25 mm)
• Thickness (Specifications block): 13/16" (21 mm)
• Size: 72" (1.83 m) x 48" (1.22 m)
• Surface: Hexagon propeller design (hexagonal traction cells)
• Underside: Progressive underside with ribbed perimeter and underside arches/rounded dots for cushioning
• Cleaning: Flush system, pressure washer, skid steer/loader, tractor
• Drainage: Voids and channels spaced ≈100 mm for rapid liquid movement
