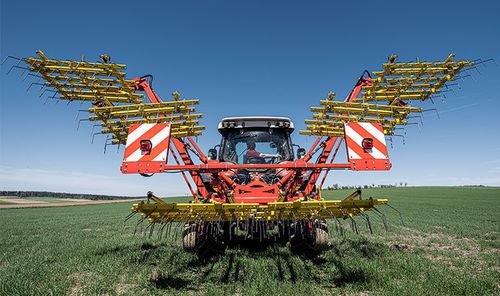

Tine harrow AS 900 M1

folding

The 7 mm tines take care of the crucial work. They are arranged in a tine spacing of 31.25 mm and in 6 rows. The main focus is on combating unwanted weeds. Functional Principle The tines penetrate the soil while harrowing to a maximum depth of 2-3 cm to break up and crumble the upper soil crust. This ensures better soil aeration and the capillarity is interrupted. However, the primary focus is on the control of unwanted weeds. 90 % of the weed germs are decimated naturally by pulling them out of the soil and depositing them to wither. The scissor folding There are two folding types for the Tined Weeder AS 900 M1: rigid or scissor folding. Here you can find a list with the differences between the folding options: Tined Weeder AS 900 M1 rigid •3.80 m transport height •One double-acting folding cylinder •One parking support at the rear and two in the front •Without mounting bracket mounting option only up to PS 200 M1 •Net weight: 950 kg Tined Weeder AS 900 M1 scissor folding •Lower transport height of 3.55 m •Two double-acing folding cylinders •Two parking supports at the rear •Without mounting bracket mounting option only up to PS 200 M1 •Net weight: 1,200 kg
