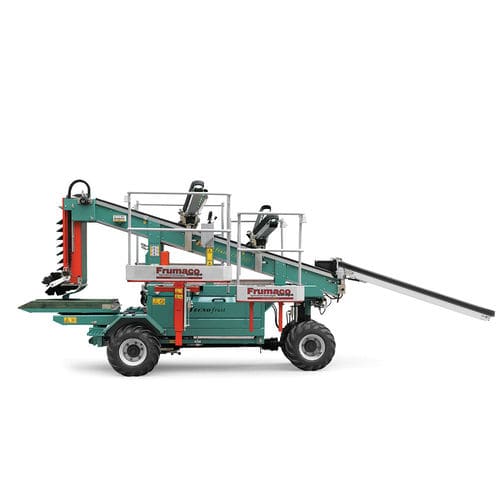

Orchard harvest trolley Tecnofruit CF105 Leveling

self-propelled

The Tecnofruit CF 105 Levelling is introduced alongside the CF 105 to meet the needs of fruit growers working in hilly regions. The Tecnofruit CF 105 Levelling is equipped with a levelling system which maintains it in an optimal position and ensures the fruit is correctly and carefully loaded. The machine is balanced along the two axes (longitudinal and lateral) by one front piston, two pistons to simultaneously raise the rear section and two pistons for the machine’s independent lateral movement. The balance control can be either manual electro-hydraulic or automatic (available from 2017). There is an acoustic warning system to advise the operator when the machine is correctly positioned ensuring excellent operational safety. With Tecnofruit CF105 Levelling, Frumaco Europe has developed and built a machine which is also ideal for the mechanizion of harvesting (and more) in those hilly regions where the most suitable fruit growing areas for quality fruit production are found. Technical data Engine:Kubota 3 cyl Type - Diesel:18.5 Kw/ 24,8 hp Front wheels:26x12.00-12'' 8 pr Rear wheels:26x12.00-12'' 8 pr Service brake - - Emergency brake/Parking brake:Hydraulic negative Diesel tank capacity:40 lt Hydraulic oil tank capacity:90 lt Aux power :12 V - 15 A Speed:0-7 km/h Speed range:2 + 2 with inversor Transmission:Hydrostatic Steering control:Joystick Traction:4WD Maximum lateral levelling:20% Maximum longitudinal levelling:20% Lenght (without bins trailer) mm:4.180 Width (min/max) mm:1.800/3.000 Height (min/max) mm:2.418/2.910 Wheel base mm:2.205 Ground clearance mm:170 Tourning radius m:3,80 Weight kg:2.310
