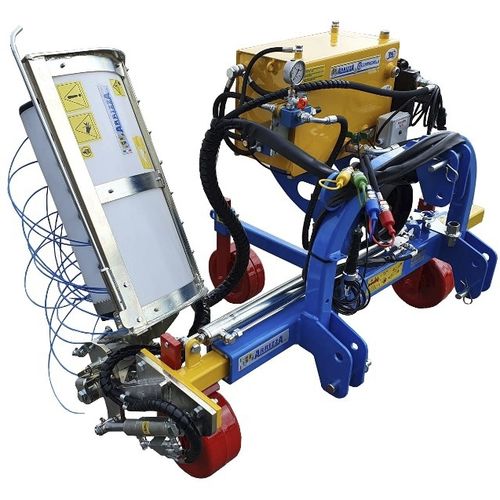

Mounted mulcher TRINCIAERBA SINGOLO
wirefor vineyardshydraulic

mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
wire
Applications
for vineyards
Other characteristic
PTO-driven, hydraulic, for tractors
Weight

Max.: 350 kg (771.6 lb)

Min.: 240 kg (529.1 lb)

Cutting width

Max.: 260 cm (102.36 in)

Min.: 130 cm (51.18 in)

Tractor power

40 ch (40 hp)

Description

Rear or front increased frame 100 x 100 x 8 with 3-point linkage and galvanized widening complete of vertical wires mower head with rotor endowed with 28 nylon wires for mechanical weeding (total 140 mt of wires) RH wires mower with hydraulic tipping and auto-return in shape system with by 2 quick tractor couplings Double height-adjustable attachment with reinforced plates (higher and lowers) Kit tank including single pump directly to the tractor power take-off, multiplier, filter, oil, maximum pressure regulator complete of type H single heat exchanger kit with thermostat Front reinforced wheels with increased width (from mm 100 to mm 140) and doubled thickness (from mm 3 to mm 6) with increased bearings and shaft, equipped with mechanical adjustment, for work depth adjustment RH cm 40, 50, 80 or 100 hydraulic side operation with 1 cylinder and 2 quick tractor couplings Oscillating mower head system during work with adjustable spring Mower head block system for road transport
