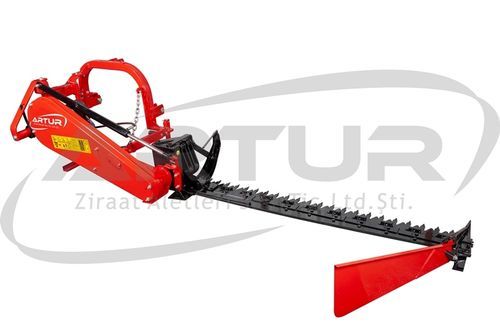

Mounted mower ÇEB series

sickle bar20 blades24 blades

Description
ARTUR Double Movement Sickle Bar Mower is a three-point linkage mower that attaches to the tractor via lower and upper link brackets. The cutter bar is driven by three V-belts; belts are designed to slip in case a solid obstruction enters the cutter bar to protect the drive and cutting components. The crankshaft and blades are dynamically balanced to ensure smooth and quiet operation. The double-movement mechanism permits the cutter bar to work at wide slope angles. The cutter bar is equipped with an automatic breaker system that allows rebound on impact with an obstruction. Attachment to the tractor is quick and can be done by reversing the tractor into position.

Technical table
MODEL | WORKING WIDTH (CM) | WEIGHT (KG) | TRACTOR POWER (HP) | NUMBER OF BLADES
ÇEB 150 HİD | 150 | 235 | <25 | 20
ÇEB 175 HİD | 175 | 245 | <25 | 24
ÇEB 205 HİD | 205 | 255 | <25 | 28

Characteristics / Technical specifications

• Model variants: ÇEB 150 HİD, ÇEB 175 HİD, ÇEB 205 HİD
• Working widths: 150 cm, 175 cm, 205 cm
• Weights: 235 kg, 245 kg, 255 kg
• Required tractor power: <25 HP (all variants)
• Number of blades: 20 (ÇEB 150 HİD), 24 (ÇEB 175 HİD), 28 (ÇEB 205 HİD)
• Three-point linkage mounting (lower and upper link brackets)
• Blade driven by three V-belts with slip protection in case of obstruction
• Dynamically balanced crankshaft and blades for reduced vibration and quiet running
• Double-movement device enables operation on wide slope angles
• Cutter bar with automatic breaker system to rebound on impact and protect components
• Easy attachment to tractor by reversing into position
