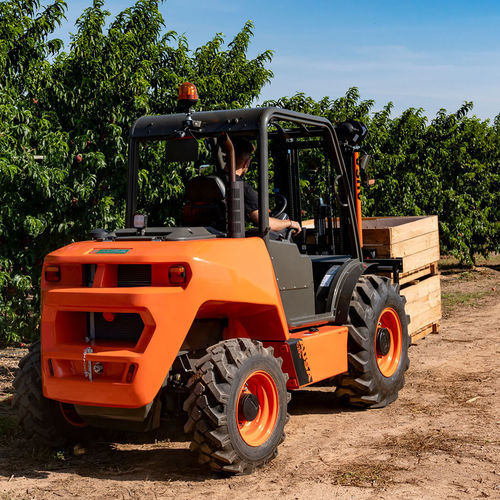

Rough terrain forklift C251H

Overview
The AUSA C251H is a hydrostatic rough-terrain forklift with a 2.5-tonne payload and a maximum lift of 5,450 mm. It provides real-time machine data on a digital display next to the steering wheel (speed, temperature, alarms, sensors) and features joystick interaction with onboard self-diagnostics. ECO Mode optimises engine rpm for lower fuel consumption and emissions. The cab delivers improved 360º visibility (approx. 30% increase vs previous model). A Hill Holder system holds the machine on slopes when the accelerator is released.

Key features

• All-terrain capability with selectable 4x2 or 4x4 FullGrip
• ECO Mode for reduced fuel use and emissions
• Hydrostatic transmission for smooth power delivery
• Digital display with onboard diagnostics and joystick control
• Tilting cab for simplified maintenance access

Technical highlights
Load capacity: 2,500 kg
Rated load at 500 mm: 2,500 kg
Empty weight: 4,255 kg
Transmission: Hydrostatic
Maximum lift: 5,450 mm
Engine: Kubota V2403-CR E5B — 31.2 kW, 4 cylinders, Stage V / EPA Tier 4f
Torque: 159.8 @ 1600
Noise level (LwA): 104 dB(A)
Max speed: 20 km/h
Maximum gradient: 38%
External turning radius: 3,020 mm
Traction: 4x2 / 4x4 FullGrip
Hydraulic flow: 50 l/min — working pressure 210 bar
Fuel tank: 62 l — Hydraulic tank: 51 l
Service brakes: Hydraulic sealed multi-disc — Parking brakes: Negative sealed multi-disc
Fork carriage: FEM 2 — Carriage width: 1,260 mm

Equipment & options (selected)

• Driving position: open cab (standard); tilting cab with assisted lift (standard option)
• Masts: 3.30 m duplex (standard); 3.70 m triplex (optional); 4.30 m / 5.40 m triplex with wide shaft (optional)
• Safety: seat belt with fasten sensor, operator presence sensor, LED rotating beacon, acoustic reverse warning, emergency stop, Hill Holder
• Lighting & driving: rear-view mirrors (standard); front/rear LED working lights (optional); speed limiter options
• Comfort: adjustable ergonomic seat, adjustable steering wheel, all-in-one joystick, armrest
• Advanced: second-generation FullGrip® (4WD), limited-slip differential on front axle, inching pedal, digital display, ECO Mode
• Forks & implements: 1,200 mm forks (standard); 2,438 mm forks (optional); 1,260 mm FEM II carriage; built-in side shifter; 400 L / 600 L buckets
• Accessories: 4th valve, load damper, reverse warning disable switch, radio, waterproof document holder, water-separator diesel filter, cyclone air pre-filter, biodegradable hydraulic oil
• Tyres & parts: multiple tyre options including flotation tyres; 1,000 h maintenance kit; spare wheel

Technical specifications

• Model: C251H
• Manufacturer: AUSA
• Payload: 2,500 kg
• Maximum lift height: 5,450 mm
• Empty weight: 4,255 kg
• Transmission: Hydrostatic
• Engine: Kubota V2403-CR E5B — 31.2 kW, 4 cylinders
• Emissions: Stage V / EPA Tier 4f
• Fuel tank: 62 l — Hydraulic tank: 51 l
• Hydraulic flow: 50 l/min — Working pressure: 210 bar
• Max speed: 20 km/h — Maximum gradient: 38%
• Traction: selectable 4x2 or 4x4 FullGrip
• Fork carriage: FEM 2 — Carriage width: 1,260 mm
