Trailed manure spreader TS series
verticals beaterssingle-axle

trailed manure spreader
trailed manure spreader
trailed manure spreader
trailed manure spreader
trailed manure spreader
trailed manure spreader
Add to favorites
Compare this product


Characteristics

Mobility
trailed
Type of spreading
verticals beaters
Number of axles
single-axle
Capacity

12.5 m³, 14 m³, 14.5 m³, 16 m³ (441.4 ft³)

Description

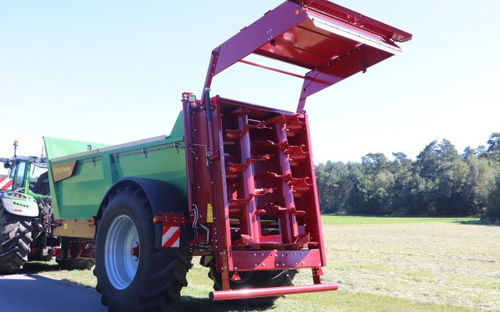

The TS 160 is the beginning of the new Strautmann series of flatbed spreaders with two upright spreading beaters, large tyres and low charging height. See the TS spreader in action here! TS-Spreader – Powerful & robust .Techn. total weight 14-16 t .Gross vehicle weight rating 13-14 t .Low centre of gravity and flat charging height .With large tyres for little rolling resistance Spreading unit Vertical spreading unit .Two upright spreaders with a diameter of 880 mm Universal spreading unit .Optional .2-disc spreading unit Superstructure Trough & transport floor .V-shaped trough due to bent section → Galvanised bottom plate and 4 mm thick side panels .Optional extensions for maximum loading capacity .Strong transport fl oor with two solid round steel chains (16 mm strong) .Optimum emptying due to cleaning strips Chassis .BPW single axle .Large tyres with a diameter of more than 2 m possible .Technically admissible axle load of 12 t .Slim drawbar for good manoeuvrability .Standard drawbar suspension via spring assembly Operation .Simple direct connection: Setting of transport floor speed at the front panel .Direct connection with E-control light: Speed monitoring of spreading unit as well as speed adjustment and reversing
