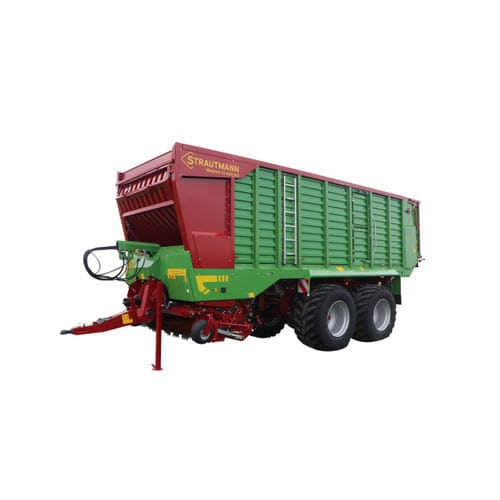

Loader wagon Magnon 10 series
tandem axle3-axleagricultural

loader wagon
loader wagon
loader wagon
loader wagon
loader wagon
loader wagon
loader wagon
Add to favorites
Compare this product


Characteristics

Construction
self-loading
Number of axles
tandem axle, 3-axle
Application
agricultural, silage
Payload
24 ton, 34 ton
Other characteristic
harvesting
Empty weight

11,100 kg, 11,700 kg, 13,600 kg
(24,471.3 lb, 25,794.1 lb, 29,982.9 lb)

Recommended power

190 ch, 210 ch, 240 ch
(190 hp, 210 hp, 240 hp)

Load volume

Min.: 42 m³
(1,483.216 ft³)

Max.: 97 m³
(3,425.523 ft³)

Loading case lenght

7.2 m, 7.8 m, 9.1 m
(23'07" , 25'07" , 29'10" )

Loading case width

2.4 m
(7'10" )

Loading case hight

2.1 m
(6'10" )

Description

With the MagnonCFS, Strautmann is presenting a new series in the segment of professional silage wagons with a large number of new features. A completely new pick-up concept, the newly developed "Exact-Cut" cutting unit and the hydraulically swivelling front Panel enable top harvesting Performance. •Large-scale superstructure •Efficient charging Unique - The Flex-Load pick-up Minimum wear and optimum adaptation to ground due to the innovative Flex-Load pick-up with plastic tines CFS - Continuous Flow System - the system for efficient charging Due to the interaction of different components, the CFS unit ensures excellent performance with little power required. Pick-up, CFS roller, rotor and Exact-Cut cutting unit are ideally matched to each other and complement each other perfectly. This results not only in excellent silage quality but also in easy towing, thus saving power, money and time. Technical modifications reserved. Rotor and cutting unit - For optimum fodder quality •Conveying width of 1.75 m with 8 helical tine rows •Helically arranged •Wide swathes are compactly conveyed to the conveyor duct Superstructure & floor •Solid all-steel superstructure •Hydraulically swivelled front panel •Easy access •Optimum filling degree •Practical maize plate Chassis Different chassis options ensure optimum driving comfort and safety at any time: •Hydraulic tandem chassis •Hydraulic tridem chassis •Passive steering axle •Mechanical & Electronic forced steering axle Operation •Intuitive and comfortable ISOBUS Operation via tractor terminal as standard •right-hand terminal Smart 570 as an option
