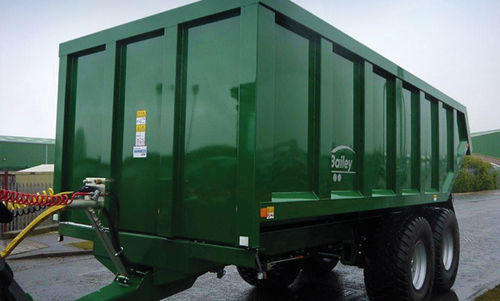

Dump trailer DUMP Series
tipping2-axleagricultural

dump trailer
dump trailer
dump trailer
Add to favorites
Compare this product


Characteristics

Construction
dump, tipping
Number of axles
2-axle
Application
agricultural
Payload
32 tons
Brake system
with hydraulic braking

Description

Our heavy duty Agricultural Dumpers are built to perform in the toughest of conditions. For added strength and durability we’ve fitted a heavy-duty RHS bottom chassis mounted on a heavy-duty tandem spring unit. The 10, 12, 14 & 16 tonne models feature a unique anti-jack knife system which, when tipping, automatically locks the tandem unit for greater stability. A tipping angle of 88° is achieved thanks to twin extra long reach 3 stage hydraulic cylinders. Heavy-duty floors and sides with hollow section runners at 12” centres are standard throughout the range. Standard features Hydraulic hose carrier, lights to RTA, independent hydraulic brakes, parking brake, 40 mm EN8 towing eye, skid & skid carrier, chromed rams, LED lights and sprung drawbars (on 12, 14 & 16). Optional extras High speed axles, rear drawbar, full front window, air brakes, screw jack, fitted weather sheet, wheel tracks and tyre equipment.
