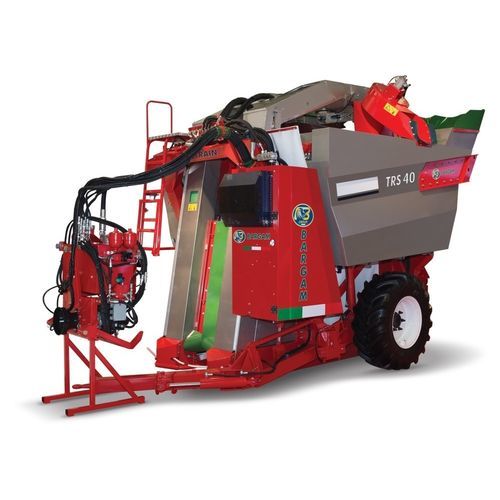

Towed grape harvesting machine V-TRAIN TRS 40

with bow rod shaker

● REINFORCED FRAME ● COMPUTERISED TRACKING DRAWBAR WITH EYELET Ø=35MM ● 400/70 R20 WHEELS (WELDED FLANGE) ● HYDRAULIC BRAKES WITH PROPORTIONAL CONTROL FROM TRACTOR ● MULTIFUNCTIONAL JOYSTICK ● MANUAL TRANSVERSAL AND LONGITUDINAL LEVELLING FROM MULTIFUNCTIONAL JOYSTICK ● CARDAN SHAFT ● HAND WASH TANK 15L ● AUTOMATIC ALIGNMENT SYSTEM ● SENSORS FOR VISUALISATION ON DISPLAY IN CABIN: OF THE FREQUENCY AND DISTANCE OF THE AGITATORS, OF THE REV/MIN OF THE RIGHT AND LEFT CONVEYOR ● WIDTH 2.95M ● AGITATION FREQUENCY REGULATOR WITH HYDRAULIC TRANSMISSION WITH ELECTRIC CONTROLS FROM TRACTOR ● SHAKERS DISTANCE REGULATOR FROM DRIVING SEAT ● LOWER WITH HOLDING OF HARVESTED MATERIAL WITH SCALE SYSTEM MADE OF SHOCK-RESISTANT MATERIAL, LENGTH 2.50 M ● TRANSFER OF HARVESTED MATERIAL THROUGH HYDRAULIC CONVEYOR, FORWARD AND REAR MOTION + ACOUSTIC ALARM, VARIABLE BELT SPEED WITH CONTROLS FROM TRACTOR ● TRANSFER OF HARVESTED MATERIAL TO THE HOPPERS THROUGH TWO BELT CONVEYORS WITH HYDRAULIC ADJUSTMENT ● STAINLESS STEEL TANK FILLING SCREW ● CLEANING OF THE LOWER PART BY 2 ASPIRATORS WITH VERTICAL AXIS ● AUTOMATIC ADJUSTMENT OF MINIMUM HEIGHT FROM GROUND ● TANK DISCHARGE HEIGHT UP TO 3 METRES ABOVE GROUND ● REAR WARNING LIGHT ● REAR VIDEO CAMERA FOR VISUALISATION OF DISCHARGE OPERATIONS ● VIDEO CAMERA FOR CONTROL OF TANK FILLING ● REAR WORKING LIGHT ● DRIVING WHEELS CONTROLLED BY INDEPENDENT HYDRAULIC SYSTEM ON THE TRACTOR'S PTO, PROPORTIONAL ADJUSTMENT WITH AUTOMATIC CONTROL ON EYELET ● GREASING SYSTEM CENTRALISED (NON-AUTOMATIC)
