Stationary substrate mixer

automatic

Description

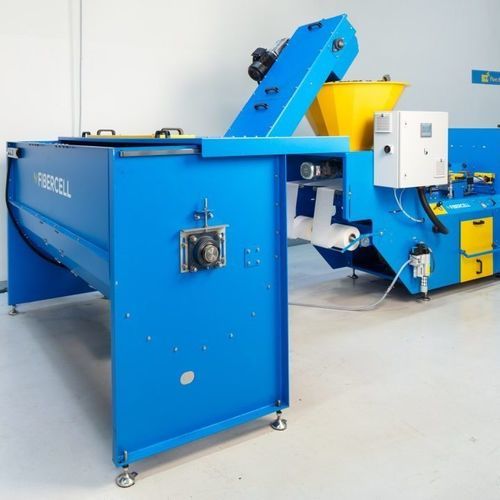

The Low Build Batch Mixer is a multifunctional soil/substrate mixing unit with an integrated feeding belt. It is available as an integrated unit that interfaces with the FiberCell filler or as a stand-alone unit with its own PLC and HMI. The integrated version is controlled from the FiberCell filler control system and supports automatic substrate feeding when requested by the filler.

Operational Benefits & Key Features

• Integrated media feeding belt for continuous and efficient loading from upstream dosing units
• Uniform and homogeneous mixing of growing media components to ensure consistent substrate quality
• Short mixing cycles enabled by an agitator design that preserves substrate structure
• Rapid filling from Big Bale Dosage Bunker for high-throughput production
• Communication between mixer and filling unit for automatic, synchronized feeding (integrated version)
• Self-cleaning rollers on feeding belts to reduce maintenance intervals
• Exchangeable wear plates for simplified replacement and reduced downtime
• Built-in irrigation timer for precise watering of substrate during the process
• Sliding lid with safety switch to enable safe access during mixing
• No compressed air required for FiberCell Batch Mixer, reducing noise and pneumatic infrastructure needs

Product Specifications

• Dimensions (L x W x H) mm: 2680 x 2720 x 2500
• Hopper capacity: max 1.5 m³ (depending on substrate)
• Weight: 1250 kg
• Standard power supply: 3x400 V + N + PE, 50/60 Hz
• Power requirement: 5 kW
