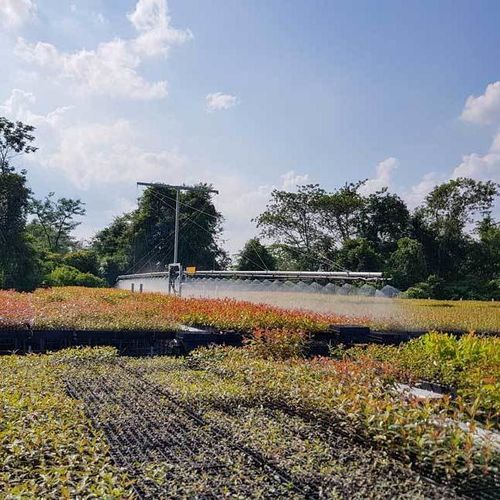

Irrigation boom with hose reel

Description
Ensuring uniform water delivery to each plant during propagation is essential for consistent growth in containerised forest nurseries. Small tray cells and limited substrate moisture reserves increase the risk of rapid moisture stress, making precise application critical.

Product overview
The BCC Holding Area Booms meet water application needs for containerised forest nurseries while providing flexible, modular operation. The system is based on a modular concept allowing features and configurations to be adapted to specific growing requirements.

Product Leaflets

• Holding Area Irrigation Boom - English
• Holding Area Irrigation Boom - Indonesian

Specifications

• Holding Area Booms: Length – 120 m effective (holding area length 128 m). Width – 38 m (maximum)
• Holding Area Booms with hose car: Length – 180 m effective (holding area length 190 m). Width – 38 m (maximum)
• Combi Booms: Length – 105 m effective (holding area length 110 m). Width – 15 m (maximum)
• Power supply: 1x 230 V, 50 Hz (depends on requirement)
• Power requirement: 0.5 kW
• Operating pressure: 2–3 bar – recommended in spray line
• Water supply pressure: 5–6 bar – recommended at point of connection
• Operating speed: Variable speed: 0–10 m/min

Technical specifications

• Product type: Modular holding area irrigation booms for containerised forest nurseries
• Lengths available: 105 m, 120 m, 180 m effective (holding area lengths: 110 m, 128 m, 190 m)
• Maximum widths: 15 m (Combi Booms), 38 m (Holding Area Booms)
• Power supply: Single-phase 230 V, 50 Hz (dependent on requirement)
• Power consumption: 0.5 kW
• Recommended operating pressure in spray line: 2–3 bar
• Recommended water supply pressure at connection point: 5–6 bar
• Variable operating speed: 0–10 m/min
