Tray washing machine

automatic

Product overview

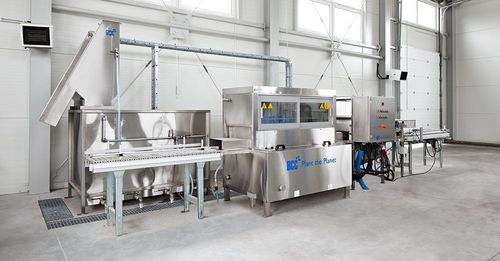

The BCC Tray Washing Machine comprises two integrated sections: a high-pressure mechanical cleaning unit and a hot-water washer section for thermal disinfection. Together these sections remove substrate residues, mineral deposits and biological contaminants from reusable propagation trays.

Context and purpose
During containerised propagation and field planting, trays accumulate old growing substrate, root fragments, weed seeds, fungal pathogens, moss and algae. These contaminants affect nursery hygiene and increase the risk of disease spread. Thorough cleaning and sanitation of trays is an essential biosecurity measure to protect plant health and production performance.

Specifications

• High Pressure Section:
  Dimensions (L x W x H): 1300 mm x 1000 mm x 1600 mm
  Power supply: 3 x 400 V, 50 Hz
  Power requirement: 8 kW
  Water consumption: 80 litres/min at 500 kPa (5 Bar)
• Maximum production capacity (High Pressure section):
  HIKO: 20–22 trays/min
  Plantek: 13 trays/min
  96 Insert Frame: 10 trays/min
• Hot Water Section:
  Dimensions (L x W x H): 2500 mm x 1100 mm x 1600 mm
  Weight: 490 kg
  Power supply: 3 x 400 V, 50/60 Hz (supplied from high pressure section)
  Power requirement: 51 kW (4 x 12 kW heating elements)
  Water consumption: 20 litres/min at 200 kPa (2 Bar)
• Maximum production capacity (Hot Water section):
  HIKO: 20–22 trays/min
  Plantek: 13 trays/min
  96 Insert Frame: 10 trays/min

Key features for nursery operations

• Two-stage cleaning combining mechanical (high-pressure) and thermal (hot-water) treatment
• Throughput compatible with common tray systems (HIKO, Plantek, 96-insert)
• Industrial power and water specifications for integration in nursery production lines
