Narrow tractor Valiant 60 AR Micro
mechanical transmissionvineyard3-cylinder

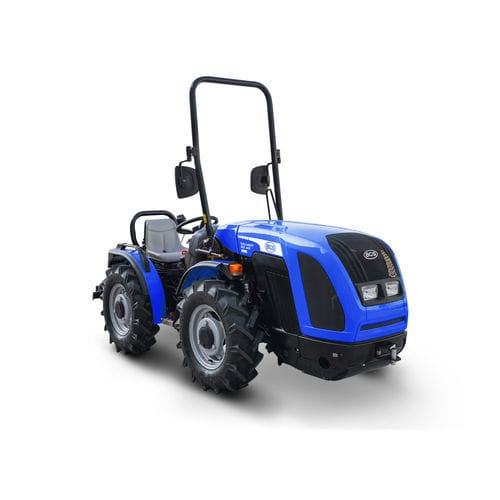

Narrow tractor - Valiant 60 AR Micro - BCS - mechanical transmission / vineyard / 3-cylinder
Narrow tractor - Valiant 60 AR Micro - BCS - mechanical transmission / vineyard / 3-cylinder
Narrow tractor - Valiant 60 AR Micro - BCS - mechanical transmission / vineyard / 3-cylinder - image - 2
Narrow tractor - Valiant 60 AR Micro - BCS - mechanical transmission / vineyard / 3-cylinder - image - 3
Narrow tractor - Valiant 60 AR Micro - BCS - mechanical transmission / vineyard / 3-cylinder - image - 4
Narrow tractor - Valiant 60 AR Micro - BCS - mechanical transmission / vineyard / 3-cylinder - image - 5
Narrow tractor - Valiant 60 AR Micro - BCS - mechanical transmission / vineyard / 3-cylinder - image - 6
Narrow tractor - Valiant 60 AR Micro - BCS - mechanical transmission / vineyard / 3-cylinder - image - 7
Add to favorites
Compare this product


Characteristics

Type
narrow
Transmission
mechanical transmission
Applications
vineyard
Number of cylinders
3-cylinder
Other characteristic
4 wheel drive, isodiametric, 3-point hitch, with ROPS
Engine power

49 ch
(49 hp)

Displacement

1,861 cm³
(63 US fl oz)

PTO speed

540 rpm
(3,392.9 rad.min-1)

Torque

Max.: 190 Nm
(140 ft.lb)

Min.: 0 Nm
(0 ft.lb)

Total length

3,367 mm
(132.6 in)

Total height

Max.: 2,260 mm
(89 in)

Min.: 2,181 mm
(85.9 in)

Weight

1,700 kg
(3,747.9 lb)

Description

Valiant 60 AR Micro is a hyper-specialised tractor intended for viticulture that requires vehicles with narrow track widths and powerful hydraulics to handle vineyard-specific equipment. The reversible driving position (provided by standard) also makes it possible to work in a practical and safe manner both with towed and front-mounted attachments. The fenders, essential and with a soft rubber profile, in harmony with the new bonnet are kind to the rich vegetation of the environment in which they operate. Micro | Small size The Micro models are the super narrow versions characterised by a very narrow overall width: only 95 cm with 7.00-18 wheels! Clean power. The Valiant 60 range is equipped with a Kohler 3-cylinder engine which develops a 49 hp @2,600 rpm. Water cooled, it ensures high power with low consumption and a generous torque of 190 Nm. The opening system of the tractor's bonnet provides full access to the engine, facilitating routine maintenance operations. Reversibility. The reversible driving position provided by standard makes it possible to work professionally with the attachment positioned in front. It takes just a few seconds to turn the operator's module, composed of seat, steering wheel and dashboard, by 1800 to work with extreme precision, quickly, comfortably and safely. Premium hydraulics system. Indispensable in hyper-specialised agriculture, and available as an option, the Premium hydraulic system includes: • 33.5 1/min oversized pump • Heat exchanger • Flow divider • Seven rear hydraulic outlets
