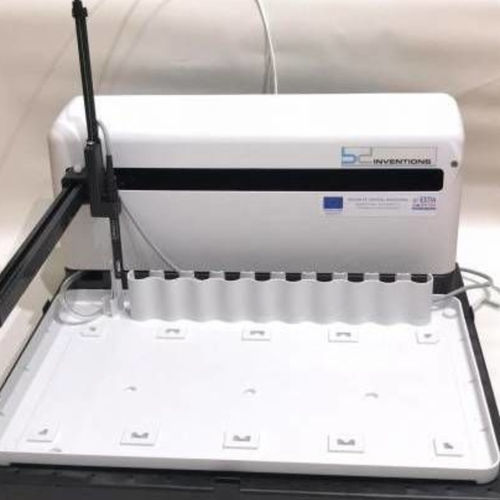

PH analyzer AutopHECaMETRO

soilwaterelectrical conductivity

Overview
AutopHECaMETRO is an automated instrument for precision measurements of electrical conductivity (EC) and pH in soils, sediments, water and biological samples. The system integrates an XYZ robotic sample handling platform and dedicated software to deliver reproducible, automated EC and pH analyses for precision agriculture and related environmental applications.

Analyser
The robotic XYZ sample handling system uses two dedicated probes: one for EC and one for pH/alkalinity. To prevent cross-contamination during sequential analyses, EC is measured first, followed by pH. The analyser supports automatic calibration of electrodes, automatic dosing of extraction solutions and automatic stirring of samples to ensure consistent preparation.

Capacity
The analyser maximum capacity is 28 containers of 120 mL. Supported configurations include up to 12 samples of 120 mL each or 20 samples of 50 mL each. Samples can be added during a run and an optional second electrode can be fitted to increase throughput.

Software
pHECaSoft robotic software enables configuration of release time, automatic stirring time, warnings and sampling depth. Sample temperature is recorded in real time. The software supports creation, import and export of measurement schedules for automatic start and stop, and exports results to .xls and .csv formats as well as printing.

Advantages

• Digital benchtop analyser
• Automated sample handling
• High reproducibility and precision
• Automatic calibration and dosing
• Fast throughput — 60 samples/hour
• Expandable capacity and optional second electrode
• User-configurable software

Applications and Market sectors

• Soils (precision agriculture)
• Sediments
• Irrigation and natural waters
• Biological and environmental samples

Specifications (summary)
pH: 0–14
Electrical conductivity (EC): 0.1 µS/cm – 100 mS/cm
Total Dissolved Solids (TDS): not specified
Salinity (calculated): not specified
Temperature: 10–50 °C; temperature compensation for pH, EC and salinity
Movement: X, Y, Z axis robotic arms
Sampling rate: 60 samples/hour
Number of samples: up to 12 samples (120 mL each) or 20 samples (50 mL each); option to add samples during measurements; maximum capacity 28 containers of 120 mL
Export data: Excel (.xls/.csv)
PC Software: pHECaSoft
Standards: ISO 17025; ISO 10390:2005; ISO 11265; BS 7755 3 4 1995
Calibration points: pH 4, 7, 10; EC calibration point: 1413 µS/cm

Technical specifications

• pH range: 0–14
• Electrical conductivity (EC): 0.1 µS/cm – 100 mS/cm
• Total Dissolved Solids (TDS): not specified
• Salinity (calculated): not specified
• Temperature range and compensation: 10–50 °C; temperature compensation for pH, EC and salinity
• Movement: robotic arms on X, Y and Z axes
• Sampling rate: 60 samples/hour
• Sample capacity: up to 12 × 120 mL or 20 × 50 mL; alternative maximum 28 × 120 mL; option to add samples during runs
• Data export formats: Excel (.xls) and .csv
• PC Software: pHECaSoft
• Standards: ISO 17025; ISO 10390:2005; ISO 11265; BS 7755 3 4 1995
• Calibration points: pH 4, 7, 10; EC standard: 1413 µS/cm
