Description

Overview

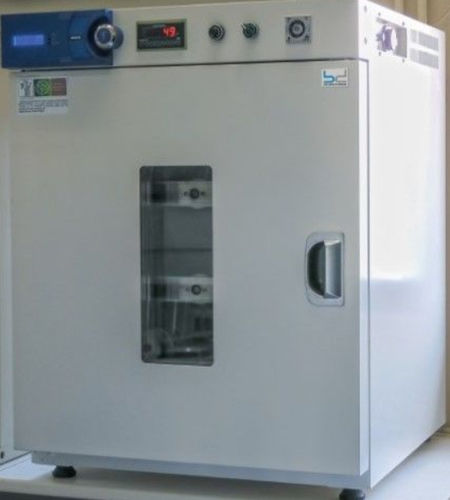

  • Roller Oven 155 is a rotary oven designed for drilling fluid aging tests with an integrated rotary mechanism for controlled sample agitation.


Main features
  • Chamber capacity: 155 L.
  • Microprocessor control with external LCD display and programmable timers for heating and rotation.
  • Temperature range: ambient +5 °C to 230 °C; accuracy 0.5 °C; stability ±1.2 °C at 100 °C and ±2.2 °C at 150 °C (per RP 13I guideline).
  • Heating performance: to 100 °C in 15 min, to 150 °C in 25 min.
  • Heating on three sides and natural air circulation to ensure uniform temperature distribution.
  • Rotary mechanism: 15 rotating cylinders; accepts aging cells of 250 mL, 500 mL and 1000 mL (configuration for 12 × 500 mL cells available).
  • Rotation motor with adjustable speed up to 25 rpm and digital speed display.


Technical specifications
  • Internal dimensions: 550 × 470 × 600 mm.
  • Chamber material: internal Stainless Steel 304; external Powder Coated Steel with Glass Wool insulation.
  • Outputs/interfaces: RS232 for monitoring and control.
  • Power: 1.7 kW; Power supply: 220 V / 50 Hz.
  • Safety features: over-temperature device, over-current protector, sensor error detector.


Applications
  • Laboratory and field testing for drilling fluid formulation, quality control and R&D in the petroleum industry.


Warranty & Support
  • 2-year warranty; spare parts available for at least 7 years.
