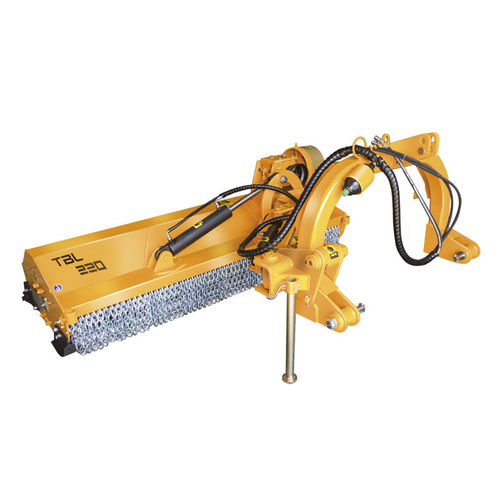

Mounted mulcher TBL Series
PTO-drivenhydraulic

mounted mulcher
mounted mulcher
Add to favorites
Compare this product


Characteristics

Type
mounted
Other characteristic
PTO-driven, hydraulic
Cutting width

Max.: 240 cm
(94.49 in)

Min.: 165 cm
(64.96 in)

Tractor power

Max.: 150 ch
(150 hp)

Min.: 50 ch
(50 hp)

Description

TBL side brushcutters, for work on roadsides, highways, country roads, canals, general agriculture and green areas. They allow brushcutting on slopes in positions from 90º to -75º. Very useful machine for shredding herbs and bushes up to 10cm. in diameter. The TBL side brushcutter model is prepared with a hammer rotor system, interchangeable hammers with blades or a multi-blade system for roads. The TBL side brushcutter model also has a gas bottle safety system, which allows it to move backwards in the event of an impact with an object, preventing any breakage. When faced with uneven terrain, the TBL side brushcutter model also has a positioning system that adapts to the terrain, allowing for multiple positions. The system of hooking up to the tractor is by means of three-point linkage and categories II-III. The transmission is by belts and the manufacturing measures are from 1,65 to 2,40 mts. The TBL brushcutter is equipped with plates or chains, the rear leveling roller of the machine, the rear dustproof skirt. The tractor powers to which the models are destined are from 50 to 90 CV. in the models of light TBL-L brushcutters and from 70 to 140 CV. in the models of reinforced TBL brushcutters. The TBL range of large displacement makes it possible to work both on woody crop farms for the remains of pruning and plant cover, and in the maintenance of farms, paths, green areas, etc. Standard: -T.D.F. at 540 RPM. -Belt drive. -Lateral displacement. -Height adjustment via roller. -Work positioning from 90º to (-75º). -Hammer Rotor. -Safety gas bottle. -Floatation pin.

VIDEO
