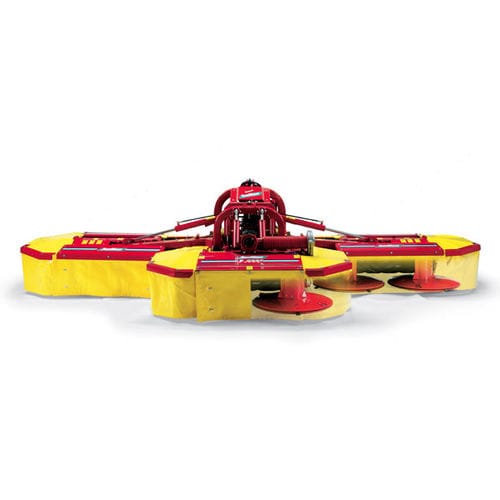

Mounted mower COMBI-T500, COMBI-T500GM
drum24 blades6 discs

mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
Add to favorites
Compare this product


Characteristics

Mounting
mounted
Technology
drum
Number of blades
24 blades
Number of discs
6 discs
Other characteristic
PTO-driven, with roller conditioner
Working width

5 m
(16'04" )

Power required

100 ch, 120 ch
(100 hp, 120 hp)

PTO speed

1,000 rpm
(6,283.2 rad.min-1)

Weight

1,500 kg, 1,800 kg
(3,306.9 lb, 3,968.3 lb)

Description

COMBINED DRUM MOWER: NEW FRONTIERS IN THE FIELD OF HAYMAKING. The COMBI-T500 and COMBI-T500GM combined mowers consist of three mowing elements with 2 drums, one frontal and two lateral, for front linkage to a tractor with front P.T.O. In this case a mowing width of up to 5 m can be obtained, thus considerably reducing work times. For rapid haymaking with exactly the right level of humidity, the COMBI-T580GM model is provided with roller conditioner, which ensures uniform rapid drying. FOR ROAD TRANSPORT OF THE MOWER, THE SIDE ELEMENTS ARE LIFTED BY MEANS OF HYDRAULIC PISTONS. When the ground is damp or marshy and you require quick reliable mowing, the drum system is the best choice. With its simple but solid and sturdy construction, the drum has a fixed supporting axle and appropriately sized transmission assemblies. The lower “idle” disc, which rotates freely, prevents the cutting disc from sinking into the soil, thus adapting to unevenness in the ground. The aims of optimal mowing – perfect cut, reduced impurities in the fodder and turf care – are all achieved. Neat rows and optimal fodder flow are further advantages of the drum mowers. OUR STRENGTHS: STABILITY AND SAFETY. Our combined mowers have been constructed to ensure machine efficiency in any working condition. For this reason the three mowing elements (one central and two lateral) are independent and jointed, permitting constant adaptation to the ground also in the case of depressions or when mowing on different levels.

Catalogs

No catalogs are available for this product.
