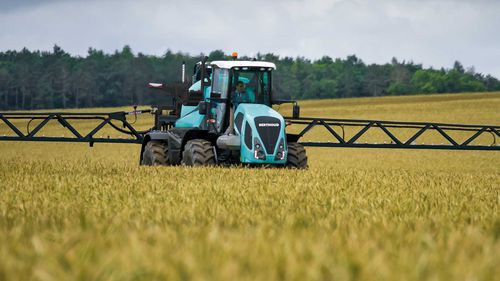

Self-propelled sprayer RAPTOR

hydraulicfolding armsthermal

The “high performance” advantage for your farm With tanks up to a capacity of 5,200 litres, booms available up to 44 m specifically designed for self-propelled sprayers with an authorised speed of 40 km/h as standard, RAPTOR combines all the equipment needed to provide you with maximum performance. It offers a wide choice of equipment enabling you to customise your RAPTOR and so adapt it to your farm and to your crop type. Chassis and transmission •Mechanically welded chassis made of large rectangular profiles for stability and strength. •Steering: 4WD and electronic steering : 2WD, 4WD, 4 crab wheels and major slope corrector functions •BOSCH REXROTH hydrostatic transmission with gear motors with ECO functionality as standard •3 speed ranges 0-19 km/h - 0-25 km/h - 0-40 km/h •The range is fitted with DEUTZ Tier 4F engines, 217 or 245 hp and Tier 3A, 200 or 270 hp (outside EU). •Depending on the version, you have a fixed ground clearance from 1.05 to 1.80 m. •Variable hydraulic track width available as an option (3,200 - 4,200 - 5,200 litre models) and variable hydraulic ground clearance available as an option on the 4,200 litre model (working range from 1.25 à 1.80 m) - click here for a video.
