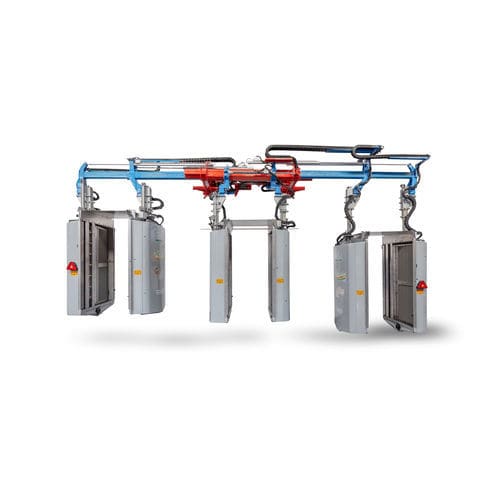

Tunnel type sprayer P3

self-propelledvineyardfolding arms

L’Arcobaleno® is the unique and innovative tunnel sprayer with an air vortex ventilation system improving product penetration and distribution and eliminating drift allowing spraying even in windy conditions and in the vicinity of buffer zones such as roads, houses, etc., thus safeguarding the environment to the fullest. .Double 1000 litre polyethylene tank for a total capacity of 2000 litres .Built-in circuit-washing tank and hand-washing canister .Support chassis equipped with quick couplings to allow easy and quick release of our application from the self-propelled vehicle by means of a special stand structure .Tank filling/emptying kit accessible from the ground .Brass pump for product dispensing and mixing with Viton membranes .Hydraulic agitators ensure excellent mixing .Brass pump for product retrieval with Viton membranes .Alternator with “Brushless” technology does not require batteries .Fibreglass RTM panels 350 mm deep .IP68 electric fans equipped with special protection grid (N°4 – H l&00 mm I N°& – H 2000 mm) .Easily accessible and highly reliable filtering system ensures high working autonomy .Brass and Viton nozzle holder with ATR Albuz nozzles (Brown – Yellow) .Spraying unit with solenoid valves and electric pressure regulating valve, adjustable from the control panel .The pressure sensor allows to check the spraying pressure on the control panel inside the cabin .Panel bottom and liquid interception wall can open to ease cleaning procedures .All 6 panels are equipped with an adjustable anti-collision joint .Telescopic structure made of adjustable hexagonal profiles like those on cranes
