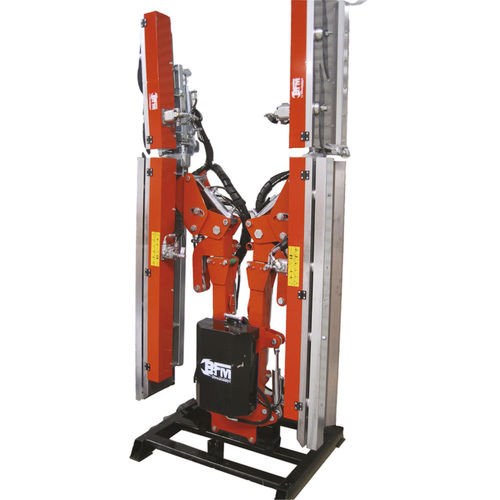

Vineyard vine trimmer CM-SD series
tractor-mountedhydraulicvertical

vineyard vine trimmer
vineyard vine trimmer
vineyard vine trimmer
vineyard vine trimmer
Add to favorites
Compare this product


Characteristics

Application
vineyard
Mobility
tractor-mounted
Other characteristics
hydraulic, vertical, sickle bar, horizontal

Description

The DOUBLE-SIDED VINE TRIMMER CM-SD utilizes the CM-S cutting head installed onto a dual-sided open V-frame design which can trim two complete half-rows in one single pass. The unique open and independent movement of each side allows for trimming in 6-7-8 foot row spacing as well as work on slopes and terraced vineyards. Increased and open frontal view for tractor operator. Fully open, the cutting bars can trim up to a maximum width of 126″ (3.2 mt) or completely closed, the unit can trim in narrow rows down to 50″ (1.28 mt) wide. The unique pantographic design allows each cutting head to maintain the same vertical position when the V-frame of the implement is opened or closed. Each cutting head can angle +/- 20 degrees which makes it ideal for sloping and terraced vineyards. Equipped with all electro-hydraulic valves and a simple and easy to use control box which mounts onto the tractor platform or inside the operator’s cab. Note: Topping horizontal cutting blades can be hydraulically adjusted and angled from 0 to 90° (vertical). Also, each vertical cutting head assembly can be manually adjusted up and down by an additional 24″ (60 cm) of vertical adjustment. Optional Features : Vertical cutting head can be fitted with 5 cutting blades (max cutting length = 70″ [177 cm]). Features •Anodized steel cutting blades. •Safety spring actuated top swing back feature in case of contact with vine poles or obstacle. •Safety protective shielding for operator safety. •Control panel with simple joystick control of all hydraulic movements. •Base for storage and travel. Accessories •Rear tractor attachment. •Oscillating sickle bar cutting heads (in place of cutting knives).
