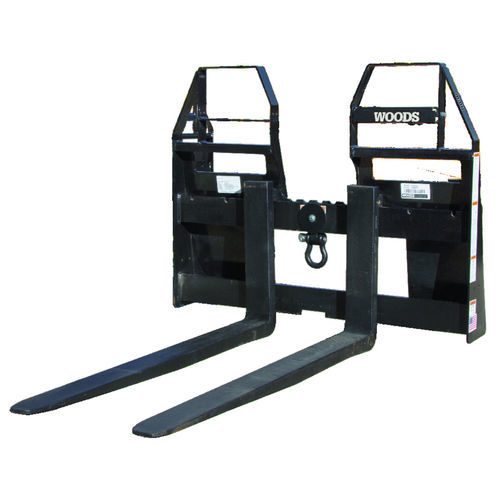

Palletized fork PFW6648S

2-tine

• Walk-thru frame and low step offer easy access and optimum visibiity • High back guard with movable walk-thru cross bar – relocate to fit your prime mover and application • Standard forged clevis for lifting from a single point on the frame • Certiftied, forged steel fork tines (ISO Class 2A) for strength and long life • Robotically welded for consistent high quality SPECIFICATIONS Frame Type Walk-thru with full frame option Coupler System Compatibility Skid steer Working Width (in) 48 (1,219 mm) Approximate Operating Weight (lbs) 470 Fork Capacity at 19.7-inch From Tine Face (lbs) 6, 600 Fork Tine Dimensions ( L x W x H) (in) 48 x 3.9 x 1.8 Fork Tine Spread Range (in) 12-45 outside to outside Fork Tine Type Double hook lock down (ISO Class 2A) Clevis Standard
