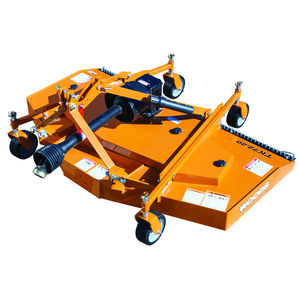

Landscaping finishing mower TBW12.40

rear-mountPTO-drivenchain

- Unique baffling and blade design lifts grass more efficiently for a better cut - Repositioned, extra-large caster wheels better handle rugged terrain - Wider discharge area allows clippings to flow through effortlessly, without clogging - Handles more horsepower than ever before to maintain superior cut quality at higher speeds - No tools needed to access belt sheaves, belt and spring-loaded idler - Includes the cutting technology from the #1 rated TurfKeeper Pro™, rated best in cut quality in independent testing. SPECIFICATIONS Hitch CAT 1, Drawbar Cutting Height (in) 1.5 – 5.5 Wing Deck Cut Width (in) 48 Center Deck Cut Width (in) 60 Deck Overlap (in) 6 Overall Width (in) 145 Transport Width (in) 88 Max. Overall Length 171 Transport Length (in) 167 Splitter Gearbox HP 100 Blade Tip Speed (fpm) 18,000 Drive Type Gearbox over v-belt Input Driveline CAT 4 (const. vel.) Wing Drivelines CAT 3 Transport Tires (in) (2) 20.5 x 8-10 Caster Wheel Bearings Tapered roller bearings Caster Wheels (in) (2) 20.5 x 8-10 Wing Deck Lift Cylinders 3 x 10 single-acting Center Deck Lift Cylinders 3 x 8 single-acting Trailer Frame Construction 4.0 x 4.0 x .25 square tube Deck Thickness 7 gauge Blade Spindles (9) ductile iron Blade Spindle Bearings Triple ball bearings Blade Dimensions (in) (6) .25 x 2.5 x 17.0, (3) .25 x 2.5 x 21 Transport Lock Automatic, manual release Transport Tires Highway speed-rated Cut Height Adjustment Spacer on caster Caster Pivot Bushings Yes Belt Construction HB-section, Aramid Belt Adjustment Spring-loaded idler w/bearing pivot Light Kit Standard Hydraulic Wing Unlock Optional Gearbox Warranty 6 year
