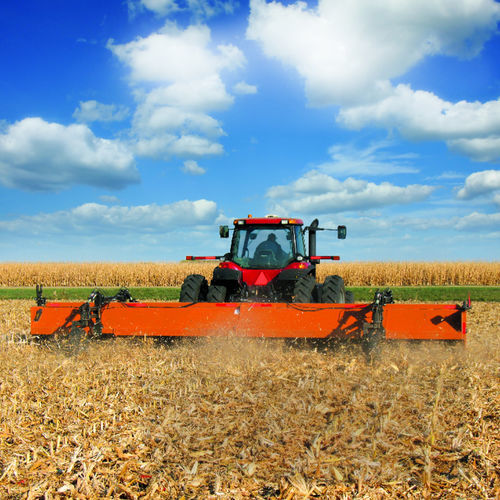

Mounted mulcher S25CD

flailfor row cropsPTO-driven

• High capacity gearbox with large oil volume reduces heat buildup, extending bearing and gear life • Specially designed oil seal protectors prevent vines from encasing and damaging gearbox oil seals • 12.75-inch diameter flail tubes with spiral mounted knives feature increased rigidity, resulting in smoother operation SPECIFICATIONS Overall Width (in) 310 Cutting Height (in) 2 to 14 Gearbox Rating (hp) 300 *Gearbox horsepower ratings listed are based on field testing. Gearbox Warranty 5 years – limited Optional Hitches 2-point, 3-point (quick-hitch compatible) pull Driveline 2 Point and 3 Point CAT 6 Pull-type CAT 6 CV Knife Types Double-edged L (6mm), double-edged HD-cotton Duraface® (8mm) L; cup or contour cup Knife Retention Bolt-on (no D-rings) Knife Pattern Spiral Number of L Knives 288 Lift HP Required 150 Pull HP Required 150 Flail Tube Diameter (O.D.) (in) 12.75 Flail Tube Bearing Diameter (in) 2.18 Hood Type Smooth, trilateral shape Hood/Deck Thickness (in) .18 (optional wearliner available) End Plate Thickness (in) 0.25 Wheel Size (in) 9.5L x 15 Wheel Arm Types Rigid strut or caster Optional Friction Clutch 24,000 lbs inch rating Automatic Clutch 30,000 lbs inch rating (1.75-inch 20 PTO only)
