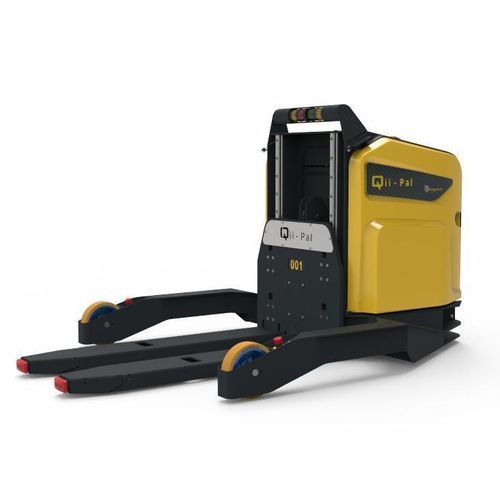

Greenhouse transport cart Qii-Pal S

compactplastic

Product overview
The Qii-Pal S is a fully automated forklift designed for tidy and efficient greenhouse and agricultural warehouses. It operates with Bogaerts Greenhouse Logistics induction wire and RFID technology to enable continuous automated operation and significant time savings compared with a conventional forklift. Multiple safety systems are integrated to ensure safe operation in busy production and storage areas.

Capabilities
The unit lifts and transports heavily loaded pallets and stacks them close together to optimise storage density. Its compact footprint and operator-free operation allow use in narrow aisles, improving usable floor space. The Qii-Pal S continuously communicates with other machines to avoid obstructions and traffic conflicts when deployed in a fleet. It can also be used manually for special handling tasks and automatically picks up and transports plastic pallets, bags and CPS boxes (empty/full).

Applications

• Transport between storage areas, Bogaerts Greenhouse Logistics palletizer / CPS container filler, dispatch or cooling zones
• Space-saving alternative to chain conveyor transport
• Operable as AGV (automatic) or manually for specific tasks

Features

• Hydraulic lifting capacity up to 1,200 kg
• Maximum lift height: 500 mm
• Compatible pallet types: 100 cm / 120 cm / euro-pallet / Bogaerts containers
• Pallet fork length: 1,150 mm
• Pallet fork width: 200 mm
• Travel speed: 3 km/h
• Intelligent traffic control for fleet coordination
• Front and rear safety scanners: automatic stop on obstacle detection
• Zero-turn capability for confined areas
• Drive with maintenance-free gearbox (no chain)
• Solid Vulkolan® wheels

Technical specifications

• Model: Qii-Pal S
• Operation: Fully automated (AGV) or manual operation
• Navigation/communication: Induction wire and RFID technology; continuous communication with other machines for traffic management
• Maximum lifting capacity: 1,200 kg (hydraulic)
• Maximum lift height: 500 mm
• Pallet compatibility: 100 cm, 120 cm, euro-pallet, Bogaerts containers
• Pallet fork length: 1,150 mm
• Pallet fork width: 200 mm
• Top travel speed: 3 km/h
• Safety: Front and rear safety scanners, intelligent traffic control
• Maneuverability: Zero-turn capability, suitable for narrow corridors
• Drive: Maintenance-free gearbox (no chain)
• Wheels: Solid Vulkolan® wheels
• Can handle: Plastic pallets, bags, CPS boxes (empty/full)
