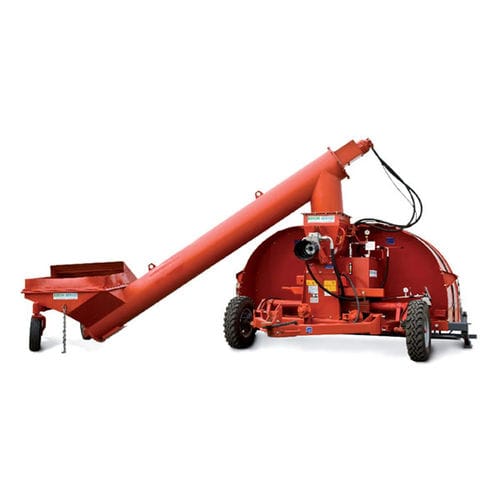

Grain bagger CL1/CL2

single-augerhydraulic systemside-loading

The BOSCHI CL1 and CL2 devices, which have been designed by Boschi Servizi, can be installed on Boschi IM9 baggers; the bagger can thus be directly coupled to conventional means of transport, adding a more reduced investment to the system efficiency. HYDRAULIC SYSTEM, SIDE LOADING AUGER AND WAGON FOR UNLOADING. •Hydraulic system, installed on board the bagger, made up by idler assembly and hydraulic pumpgearing-up, oil tank, filter, thermometer, pipe fittings and connection pipes. •Side loading auger, 450 mm diameter, made up by coil and pipe of reinforced thickness, hydraulic radial engine, unloading hopper, pipes, fittings and transportation wheels. •Side loading hopper, available in different types, ensuring maximum compatibility. The Boschi CL1 device requires the use of a means with rear unloading fitted with an unloading opening. The Boschi CL2 device needs a means with rear unloading and allows the use of the whole tailboard width. Technical features: Drive system PTO shaft Tractor Minimum Power 44 kW (60 hp) PTO shaft speed 540 r.p.m. Horizontal silo size Ø 9 feet (2,74 m) Types of products to be bagged Any kind of grain Brake system Hydraulic disk brakes adjustable by hand pump Capability More than 200 Ton/h Total weight 1,070 kg (only the device) Side loading auger Ø 450 mm
