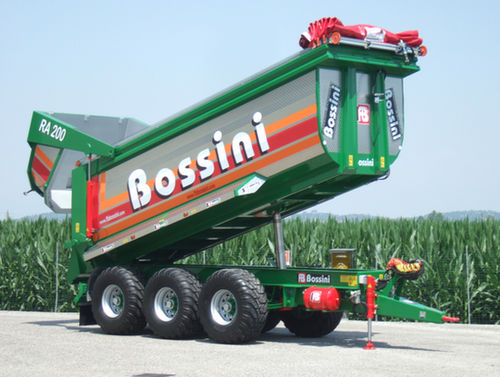

Tipping trailer RA3 200/6
3-axleagriculturalwith hydraulic braking

tipping trailer
tipping trailer
tipping trailer
tipping trailer
tipping trailer
tipping trailer
tipping trailer
Add to favorites
Compare this product


Characteristics

Construction
tipping
Number of axles
3-axle
Application
agricultural
Brake system
with hydraulic braking
Load volume

Max.: 44 m³
(1,553.845 ft³)

Min.: 25 m³
(882.867 ft³)

Loading case lenght

6.2 m
(20'04" )

Loading case hight

1.8 m
(5'10" )

Description

•Hydraulic tailgate with rubber elements (airtight closure): standard ÷ increased with capacity •Rear opening for unloading cereals •Air brakes, hydraulic or both air/hydraulic •EC European Certification •Patented hydraulic suspension with new torpress 3 sectors with rings and multilayer membrane for heavy use. New connecting pipes increased Ø 65 mm •Nr.3 increased axles with 10 industrial holes and increased brakes •First and third steering axles with hydraulic block •Brakes modulator + steering correctors •Tires: - 445/65 R22.5 radial - 500/60 R22.5 radial low pressure - 550/60-22.5 low pressure - 560/60 R22.5 radial low pressure - 600/50 R22.5 radial low pressure - 710/45 R22.5 radial low pressure •Industrial 7-stage under container tilt cylinder •Increased pump of 125 lt/min with remote control on the tractor for lowering of the container •Industrial chassis IPE 270 - S355 JR •Hydraulic support foot •Bolted eyelet type: F3 ÷ K80 ÷ Twist/Fixed Ø 50 mm •Bi-component paint ÷ hot galvanized of the container ÷ stainless steel container •Complete of cardan, galvanized tool box and small ladder in the back
