Loader shovel bucket L85 series

Description

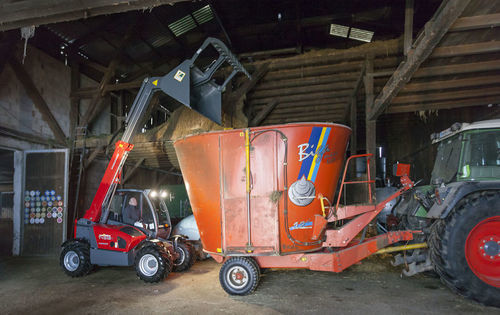

The L85 bucket with downholder is designed for handling loose loading material and for attachment to loaders with 1 to 2 tonnes lifting capacity. The standard downholder (welded steel sickles) secures material in the bucket but is not intended for heavy pulling or scraping tasks (e.g. removing manure from stables or loading compacted silage).

Standard equipment

• High wear-resistant cutting edge 150 x 16 mm, hardness 500 HB
• Robust substructure
• Bucket depth 900 mm, bucket height 750 mm
• Downholder with welded steel sickles
• Widths 1000–1700 mm with one double-acting hydraulic cylinder; 1900–2100 mm with two double-acting hydraulic cylinders
• Opening width approx. 1220 mm

Available variants (Width — Sickles / Downholder — Cylinder — Volume — Weight — Part-No.)

• 1000 mm — 6 / 1 — 1 — 585 l — 200 kg — L85 BA-05
• 1200 mm — 7 / 1 — 1 — 705 l — 230 kg — L85 BA-07
• 1300 mm — 7 / 1 — 1 — 760 l — 245 kg — L85 BA-08
• 1500 mm — 8 / 1 — 1 — 880 l — 280 kg — L85 BA-10
• 1700 mm — 9 / 1 — 1 — 1000 l — 315 kg — L85 BA-12
• 1900 mm — 10 / 1 — 2 — 1110 l — 365 kg — L85 BA-14
• 2100 mm — 10 / 2 — 2 — 1230 l — 420 kg — L85 BA-16, HZ-2N

Special equipment / Options

• Quick coupler options: Euro-System AF-M4; Frontloader without Euro-coupling NE-02; Courtloader NE-41; Wheel- or telescopic loader NE-51; Wheelloader with Z-bar kinematic NE-59
• Color options: RAL 7043 (grey), RAL 9005 (black), RAL 2011 (orange), colors similar to AGCO grey, Fendt green, MF red, John Deere green
• Downholder options: HZ-02 (2 cylinders for 1000–1700 mm), 2 downholders with 2 cylinders (1000–1700 mm), 2 downholders with 2 cylinders (1900 mm)
• Optional stronger cutting edge 150 x 20 mm, 500 HB (priced per meter)
• Removable bucket side parts (screwed) SH-02
• Optional Kramer Smart-Attach Coupler QK-15

Characteristics / Technical specifications

• Model designation: L85
• For loaders with 1–2 t lifting capacity
• Bucket depth: 900 mm
• Bucket height: 750 mm
• Cutting edge (standard): 150 x 16 mm, hardness 500 HB
• Optional cutting edge: 150 x 20 mm, 500 HB (priced per meter)
• Downholder type (standard): welded steel sickles
• Opening width: approx. 1220 mm
• Widths available: 1000–2100 mm with corresponding volumes and weights as listed above
• Hydraulics: 1 double-acting cylinder (1000–1700 mm) or 2 cylinders (1900–2100 mm); some 2100 mm configurations with 2 downholders and 2 cylinders
• Volume range: 585 l (1000 mm) to 1230 l (2100 mm)
• Weight range: 200 kg (1000 mm) to 420 kg (2100 mm)
