Filter 0200175.240707

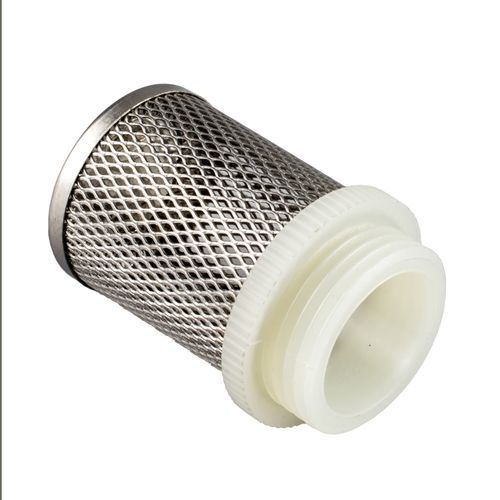

This product is an Inox filter featuring one male end with a G1 thread, constructed from white polyamide 66. It is designed for applications requiring robust filtration and reliable connectivity, utilizing a stainless steel filter element and a durable polyamide body. The filter is suitable for use in systems where a G1 external thread connection is required and can withstand significant operating pressures and temperatures.

Technical Data Table

• Connectivity standard: External thread GAS cylindrical ISO 228/1
• Connectivity standard (manufacturer note): Bucchi srl for pipe fittings adopts as standard connection ISO 228/1; to improve hydraulic seal, it has created its own internal regulations based on a soft conical thread. To ensure the declared hydraulic seal, a slight tightening with a key is expected, which does not cause breakage of the coupling. (See table tightening torque)
• Operating pressure: 10 bar at 20°C
• Max working temperature: 85°C
• Materials: Stainless steel filter
• Colors: Natural

Variants

• Code: 0200175.240707
• G1: 1"
• L: 10
• E: 40
• H: 56

Additional Information

• The maximum tightening torques specified for Bucchi fittings depend on the compliance of the threads with international specifications.

Caractéristiques / spécifications techniques

• Product type: Inox filter with one male end
• Thread type: G1 external thread (ISO 228/1)
• Body material: White polyamide 66
• Filter material: Stainless steel
• Operating pressure: 10 bar at 20°C
• Maximum working temperature: 85°C
• Color: Natural
• Dimensions: L = 10 mm, E = 40 mm, H = 56 mm
• Product code: 0200175.240707
