Livestock shelter

calffor horsesgroup

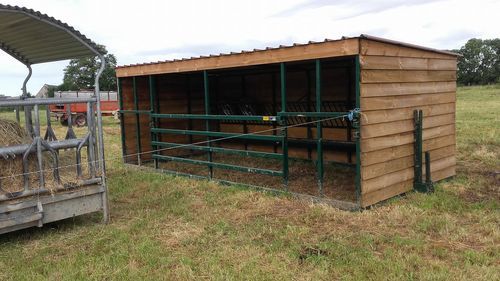

This movable shelter is designed to protect small to medium-sized animals (calves, store cattle, heifers, sheep, goats, pigs) year-round from winter cold and summer sun. It enables animals to stay at pasture longer and simplifies care, vaccination or isolation when required.

Main uses and features :

• Provides sheltered feeding and handling of young animals using removable selection bars and optional trough and manger configurations.
• Passages can be closed to treat, vaccinate or isolate an individual (optional sliding barriers).
• Easy and quick to move with an agricultural tractor; a single pair of wheels and a drawbar are sufficient to move several shelters.
• Can be positioned against a building or relocated between plots without the need for a building permit.
• Delivered assembled and ready for on-site installation.

Construction and finishes :

• Metal frame of welded tubes, shot-blasted and painted (polyurethane paint with hardener).
• Cladding of 28 mm boards in pressure-treated pine (class 4).
• Roof made of brown-red coloured roofing sheets.

Options and accessories :

• Removable selection bars to restrict access to mothers and allow only young animals to pass.
• Sliding barriers to close animals inside.
• Optional trough and manger for feeding.
• Lighting device supplied for road transport (to be removed once shelter is in place to avoid soiling or damage).

Compliance and recommendations :

• The lighting device allows road circulation in compliance with the applicable European regulation (EU 2015/68).
• The shelter must be towed only by an agricultural tractor.

Technical characteristics / specifications :

• Default length: 6 m (other lengths available on request: 3 m and 9 m).
• Width: 2.50 m or 3 m.
• Several heights offered.
• Materials: treated metal frame, 28 mm pressure-treated pine cladding, brown-red roofing sheets.
• Delivered assembled.
• Options: removable selection bars, sliding barriers, trough, manger, lighting device for road transport.
• Manufacture: model produced by the company since 1995.
