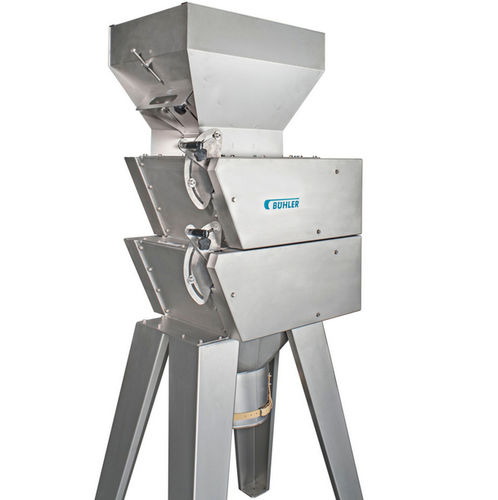

Barley mill Smartgrist

for maltroller

Overview
The Smartgrist grist mill grinds malt and barley in two passages, producing husks, grist and flour with a small footprint. It is designed for small and medium breweries with brew sizes between 20 hl and 40 hl.

Key benefits

• Compact design suitable for a wide range of breweries: compatible with show and industrial breweries and simple to install in constrained layouts.
• Modular options: extra hopper volumes available (80 L or 150 L) and an optional sampler for rapid quality checks.
• Gentle grinding: specially tempered titanium rollers for controlled grind and reduced dust generation.

Highlight features
Simple integration into your plant
The compact stainless steel construction and refined finish make Smartgrist suitable for show breweries while its design also supports installation in larger industrial plants. Equipment withstands pressure shocks up to 0.5 bar.

Safety — High degree of operational safety
An optional permanent magnet in the feed gate prevents metal contamination. The roller assembly is spring‑loaded so the gap opens to allow stones to pass without damaging the mill.

High output — The mill for direct mashing
Smartgrist supports direct mashing without grist containers for brews up to 20 hl and can be used for indirect mashing up to 40 hl per brew.

Services and training
Bühler’s service and training offerings keep operators current with product use and maintenance, improving uptime and process reliability.

Technical specifications

• Model: Smartgrist
• Grinding passages: two passages (four rollers in two passages)
• Roller material: specially tempered titanium rollers for gentle grinding
• Optional equipment: extra hopper (increases hopper volume to 80 L or 150 L), sampler, optional permanent magnet in feed gate
• Roller assembly: spring‑loaded for stone passage protection
• Design: compact stainless steel design, suitable for show and industrial breweries
• Pressure shock resistance: up to 0.5 bar
• Suitable for direct mashing: up to 20 hl without grist containers
• Indirect mashing capacity: up to 40 hl per brew
