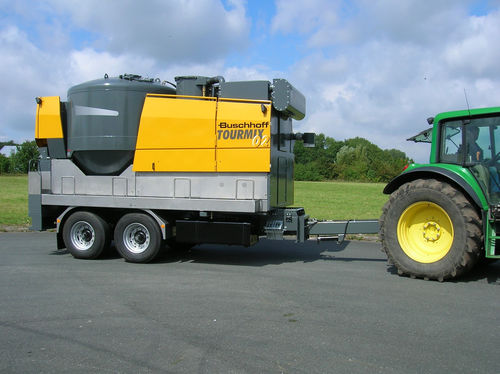

Feed mill with hammer mill Tourmix SD

mobile

•Optimum performance combined with easy handling •User-friendly residue emptying of the complete plant •Minimum maintenance cost through few wear parts •The performance which results from the year-long proven combination of Mercedes-Benz diesel engine OM 501 LA with hammer mill HF 400 and grain squeezing unit GQ 64-2 was significantly increased again by a rotary piston blower with intake air pre-cooling. An increase of 30% of the intake vacuum (-0,65 bar) provides outstanding conveying performance. •Coarse meal, rolled goods and additional feed components are directly (without any augers) sucked into the mixer. Afterwards the mixer is emptied pneumatically.. •By means of the innovative rotational sucker, feed residue is automatically removed from the mixer bottom. At the same time, pressure inside the mixer is gradually relieved. . Suction pressure mixer •The capacity of the weighing mixer is 10.800 litres, enabling a filling with heavy bruised grain of up to 7 tons. •The solid steel container is designed according to pressure machinery guideline 97/23EG and certificated by the German TÜV inspection authority. •The continuous flow of ground or rolled goods directly into the mixing auger and the innovative distribution head above the mixing auger assure a homogenous mixture for a complete mixer filling. Dust separator •The integrated compact dust separator supports a high suction performance. Conveying pipes •Short distances and fully-opening ball valves assure low resistance and a high conveying performance. •The pneumatic emptying works without any problems due to the electronic load control.
