Buschhoff plants do not only excel in the milling of grain and in the mixing of feed, but also in caring for a fast and reliable conveyance of the resulting product.

This is accomplished for example by conveying devices like elevators, tubular and trough screw conveyors and spiral conveyors. Motor-operated distributors and outlet slides enable a fully-automatic loading of silos. By pneumatic conveyance all materials can be transported easily and without contamination.

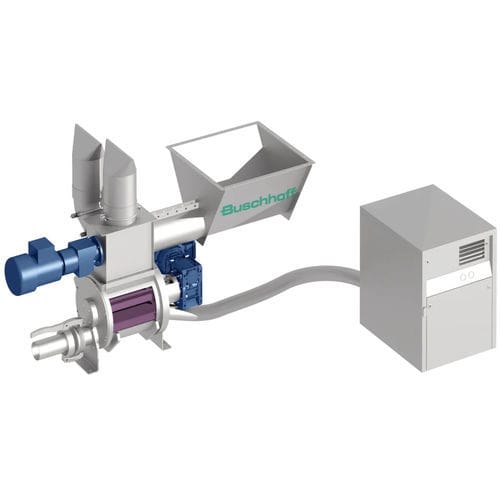

For pneumatic transport Buschhoff uses the bruised grain blower type SG 50 F. It is effective for conveying distances of up to 200 m. Conveying performance depends on distance and can reach 3 t/h at optimum conditions. Our control provides optimum adjustment of the performance/distance ratio. As the blower operates at high pressure (comparable to a silo tank truck), the bruised grain is conveyed gently and cost-efficient because of low energy consumption.

The blower is fitted with a maintenance indicator, air filter, and pressure gauge. An empty-level indicator at the intake part prevents unnecessary idling. The rotary distributor for 3 pressure lines can be motor-operated for automatic target assignment. The pipe connector features a non-return flap.
