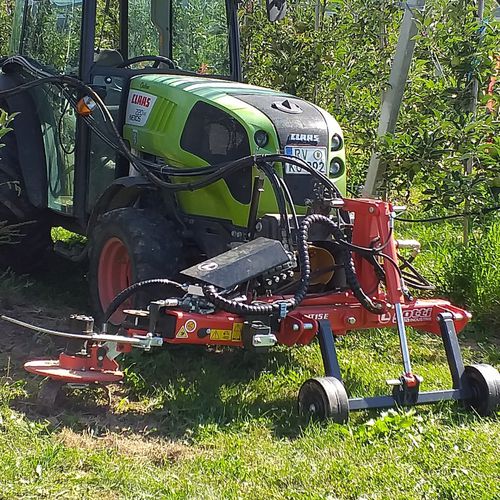

Front-mount row crop cultivator IT 15

mountedtractor-mounteddepth control

Description
The IT 15 in-row cultivator is a reversible multi-function tool carrier designed for work in rows from 2.20 m width. It is configured for mounting on a tractor 3-point linkage and can be installed on the front or rear depending on the chosen configuration. The tool head accepts a wide range of Lotti mountable implements for soil working, canopy management and grass cutting. The head can be tilted positively and negatively to operate on hilly or terraced ground. The machine requires a hydraulic supply with a minimum oil flow of 12–15 L/min. Stability and precision are ensured by a solid frame and two adjustable support/depth wheels.

Available models

• IT 15 H: with 2-function hydraulic distributor
• IT 15 E: with electro-hydraulic distributor, 4 functions (joystick control)
• IT 15 A: front mounted on a bracket
• IT 15 3A: designed for reversible tractors

Technical data
Model | Frame attachment | Weight | Machine width* | Working width | Head inclination | Horizontal ram extension
IT 15 H | Front / rear 3 points | 160 kg | 225 cm * | 130 – 180 cm | -15° / +25° | 50 cm
IT 15 E | Front / rear 3 points | 205 kg | 230 cm * | 125 – 185 cm | -15° / +25° | 60 cm
IT 15 A | Front on bracket | 235 kg | 220 cm * | 115 – 175 cm | -15° / +25° | 60 cm
IT 15 3A | Front on lifter | 220 kg | 220 cm * | 115 – 175 cm | -15° / +25° | 60 cm
*For proper operation we recommend a tractor at least 40 cm narrower than the working row width.

Options / Accessories

• J: uses tractor joystick (no hydraulic cart)
• L: horizontal extension +280 mm
• -R: oil cooler (not installed by default)
• R: flow distribution valve
• RM: flow distribution valve with implement stop control
• SH: hydraulic side shift

Key specifications

• Usable in rows from 2.20 m width upward
• Reversible mounting: front and rear 3-point linkage or front bracket (version A)
• Head inclinable -15° / +25° for hilly or terraced ground
• Hydraulic supply required: minimum 12–15 L/min
• Two adjustable depth wheels for stability and precision
• Multiple configurations to suit different tractors and controls
• Compatible with a wide range of Lotti tools for soil and canopy work
