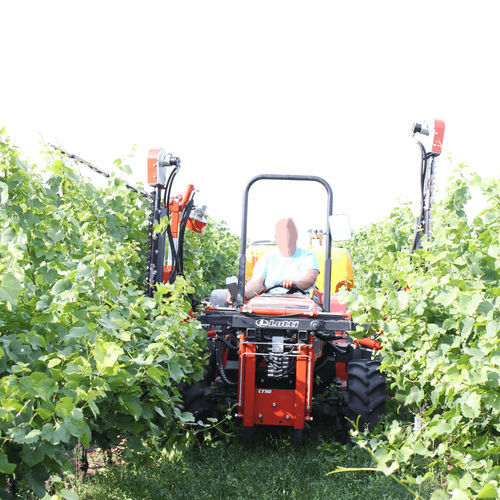

Vineyard pruning machine CT 50

vine shootmountedvertical

Summary
The CT 50 is a double trimmer for working row widths from 1.80 m to 3.00 m, designed for front mounting on tractors.

Description
The CT 50 is a double trimmer with a double-upright frame compatible with interchangeable Lotti tools for canopy management. It mounts on the tractor front via a quick-coupling bracket with clamp. After use, the unit can be placed on a dedicated standing foot to reduce operator risk. The compact central section ensures good visibility during operations.

Main functional features

• Vertical ram: 400 mm on both sides, with positive and negative inclination adjustment
• Two horizontal rams: 400 mm each, enabling working widths between 1.80 m and 3.00 m
• Hydraulic supply required: minimum oil flow 20 L/min
• All movements controlled by an electro-hydraulic joystick located in the tractor cab
• Front mounting with quick coupling bracket and clamp

Accessories / Optional items

• Hydraulic oil tank
• Oil cooler
• Oil flow dividing valve

Technical data
Model | Frame attachment | Weight | Vertical ram extension | Horizontal ram extension on each side | Post inclination
CT 50 E | Front on bracket | 205 kg | 40 cm | 40 cm | -3° / +60°

Specifications

• Machine type: double trimmer with double-upright frame
• Mounting: front of tractor with quick coupling bracket equipped with clamp
• Stand: replaceable on a dedicated standing foot for safe storage
• Vertical ram: 400 mm on both sides
• Horizontal rams: 400 mm each (one per side)
• Usable row width: from 1.80 m to 3.00 m
• Minimum hydraulic oil flow required: 20 L/min
• Control: electro-hydraulic joystick operated from tractor cab
• Model variant shown in technical table: CT 50 E
• Weight (CT 50 E): 205 kg
• Vertical ram extension (CT 50 E): 40 cm
• Horizontal ram extension on each side (CT 50 E): 40 cm
• Post inclination range (CT 50 E): -3° / +60°
