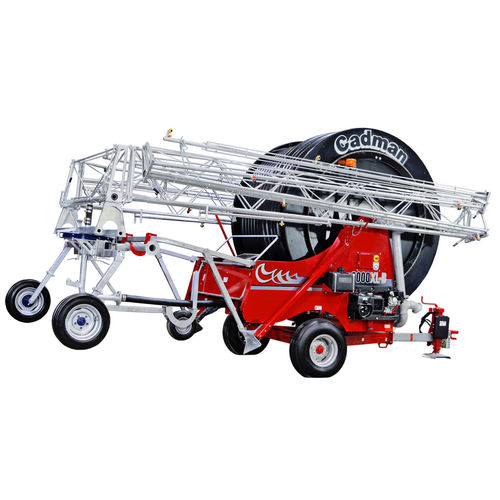

Hose-fed irrigation boom C Series

4-wheel

Benefits: - Controlled droplet size reduces soil damage - Large droplets can be selected to reduce drift while fine droplets can be used for very delicate crops - Reduced impact from small droplets also reduces soil capping and soil erosion - Low pressure operation helps reduce pumping costs and puts less strain on the pipeline - All our booms are made from steel and are fully galvanized which ensures a long life span 3-Wheel Boom Features (Models C-18, C-24, C-30, C-40): - 3-Wheel mounted booms allow lane spacings of 59’ to 200’ or 18m to 61m - For ease of operation the booms are transported on the reel and a fixed hydraulic lift system has been developed to transport the booms safely - All models give accurate and uniform water distribution under a wide range of conditions, with controlled droplet size to match the crop - The booms operate at a low pressure (9 to 60 psi / 0.6 to 4.1 bar) and can apply from 61 to 220 gpm or 277 to 998 l/min 4-Wheel Boom Features (Models C-50, C-64): - Can be towed and operated from either end - The option of offset hose feed’ keeps the hose reel pipe in the wheeling, alleviating traction problems - Semi-automatic locking catches mean that even the largest booms are genuinely a one-man operation - No lifting or carrying - 4-Wheel steering means the boom follows the tractor into the row to keep crop damage to a minimum - Choice of pressure regulated spray-jets or rotators are available for required rates and droplet size. The boom operates between 100 - 400 gpm or 454 to 1816 litres per minute. - A choice of blanking plates, big-gun mounting kits and end sprinklers give the booms incredibly good versatility
