Self-propelled sprayer MAGT03

hydraulicelectricfor greenhouse

Short description
Compact traction unit for agriculture combining the GT traction group and stabilizer. Designed as a mobile transport and accessory carrier across the farm, the unit features a patent-protected design. Videos of each accessory are available on the product page.

More info
The GT Traction Group is engineered for multifunction use across agricultural operations. With the stabilizer accessory installed, it functions as a farm transport vehicle for quick movement between crop rows and as a versatile connection point for a range of interchangeable accessories. The traction unit is sold separately from accessories and includes the following features:

• Manual start with hand puller (electric start to battery available/included)
• Accessory attachment system at front and rear
• 4-stroke gasoline engine (diesel option available)
• Two-speed transmission (short / long)
• Wheel disc with hand brake
• 360° rotary handlebar for manoeuvrability

Additional options / extras available to the GT

• Electric start to battery (included)
• Side stabilizer kit
• Set of 4 galvanized pins for accessories
• Diesel engine option (on request)

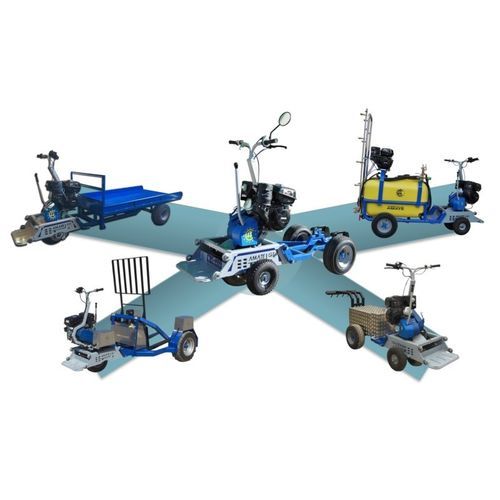

Available interchangeable accessories (sold separately)

• ACGT03 - Pallet transporter (transport pallets of produce from greenhouse to warehouse; load capacity 750 kg). Two versions: ACGT02 – pallet transporter with manual hydraulic lift; ACGT03 – pallet transporter with electric hydraulic lift
• ACGT04 - 300 L tank (for spraying treatments; compatible with treatment bars and mounted spraying equipment)
• ACGT01 - Transport platform 200 x 100 cm (for boxes or goods; optional manual frame). ACGT10 – platform with manual hydraulic lift
• ACGT06 - Hydraulic rake (collects and groups row vegetation; includes brush for plastic/mesh floors and barbed brush for sand or ground crops)
• ACGT09 - Vertical treatment bars (for hose-based treatments using the farmer's systems)
• ACGT05 - Stabilizer (enables use of the GT group as a transport vehicle within the agricultural area)

Data sheet
Width: 76 cm
Depth: 110 cm
Length: 110 cm
Height: 145 cm
Weight: 120 kg
Load capacity: depends on fitted accessory (example: pallet transporter 750 kg)
Power: 9.5 hp (gasoline) – 11 hp (diesel option)

Technical specifications

• Reference / SKU: MAGT03
• Width: 76 cm
• Depth: 110 cm
• Length: 110 cm
• Height: 145 cm
• Weight: 120 kg
• Load capacity: varies by accessory (example: pallet transporter 750 kg)
• Power options: 9.5 hp (gasoline) or 11 hp (diesel option)
• Start: manual puller (electric start to battery available/included)
• Drive: two speeds (short / long)
• Features: front and rear accessory attachment system, hand brake on wheel disc, 360° rotary handlebar
