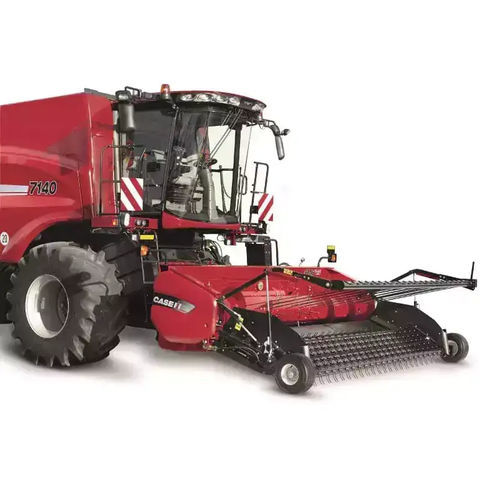

Grain pickup head 3000

swathgrass

Cereals, canola, beans, peas, lentils, grass seed and any other crops, the 3016 pick-up header range is the solution to them all. It gently lifts swaths cleanly and tidily with minimal seed losses. The swath is transported gently on the belts to the combines’ feeder. The pick-up belts cover the total width of pick up, guaranteeing the gathering of all material without running over adjacent swaths. Extra picking fingers increase the performance in tough conditions. Pick-up belt speed can be adjusted to combine forward speed, for maximum thoroughness of lifting and minimal grain losses. The swath remains intact until it reaches the combine’s internals. Swath pick up guaranteed in all terrain The Pick-up with 30 cm (12 inch) movement range, guarantees excellent picking ability in rough terrain. Gauge wheels are fitted as standard, and height adjustment allows them to be lowered for optimum crop ingestion and to prevent the picking up of stones and soil. Castor gauge wheels are available as an option, helping eliminate ground scuffing, and reduce frame stress when turning with the header on the ground. Header height control helps crop lifting in uneven terrain. The two sensors in conjunction with the height and lateral tilt circuit systems maintains smooth operation at fast speeds of 12 -14 km/h (8-9 mph).
