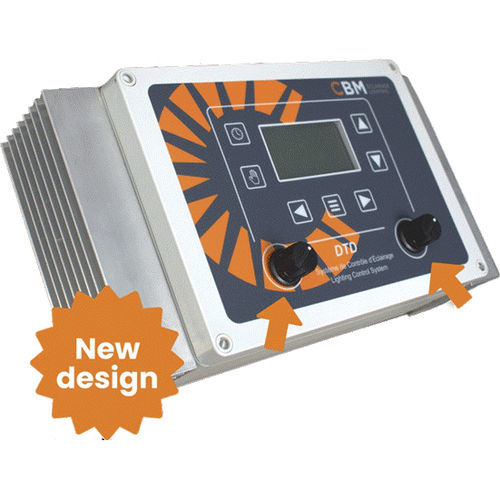

Lighting control system DTD series

automatic

Create a true dusk to dawn environment. The DTD controller allows you to dim CBM lighting products from 0,2% to 100% without flickering. Just like humans, abrupt contrasts in luminosity can add stress and interfere with your animals’ well-being. Recreating the natural light cycle is conducive to good animal behavior. Now with Automatic/Manual knobs, our high precision control allows you to efficiently manage your lighting system. The push buttons with potentiometer knobs enable a swift transition to manual mode. The DTD controller can be used in Master or Slave mode allowing automated control of lighting according to preset preferences or conditions, therefore offering more flexibility. It is compatible with most centralized systems for an increased optimization of your operations. The DTD-2 version offers the possibility to have both zones operating their own program. Available in One or Two zone configuration, DTD series offers 10 amps capacity per zone and powered on 220V. Line voltage and Frequency - 220 Volts – 50 Hz Main Fuse - 10 amps Dimming inputs - 1 input 0-10V source - 2 inputs 0-10V source Dimming outputs - 1 output 0-10v source - 2 outputs 0-10v source Dimming technology - Transistor Power output - 1 zone of 10 amps - 2 zones of 10 amps Screen - LCD with pushbuttons Bypass switches - Push potentiometer Operation mode - Programmable or Slave Programing - 12 periods of 24 steps Minimum level setting method - Internal potentiometer Dimensions - 290mm x 90mm x 180mm - 340mm x 90mm x 180mm
