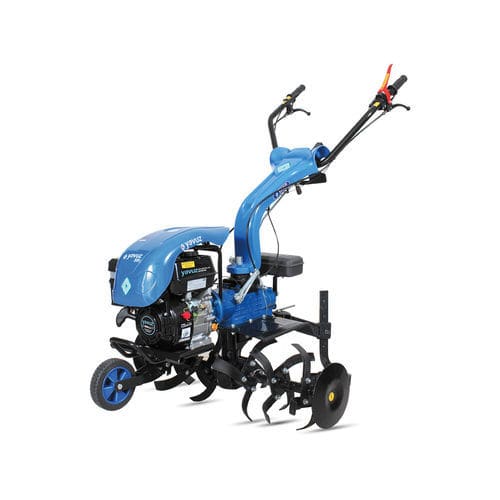

Gasoline engine walk-behind tiller 300

Product name
Rotary tiller Yavuz 300

Overview
Manual walk-behind rotary tiller with 3 forward and 1 reverse speeds. Equipped with conical and bevel gearbox, adjustable working width (60–90 cm) with protective side disks, and a motor-stop safety device that immediately shuts off the engine. Upper PTO fixed speed and lower PTO synchronized with gearbox. Conical dry-type clutch and optional wheels (400x8). Engine: Yavuz 4-stroke gasoline engine with Ropc starting system.

Technical Details
Serial No: Yavuz 300
Transmission and Diff: Manual 3 forward and 1 reverse speed
Gearbox Type: Conical and bevel gear box
Tiller / Working Width: Adjustable 60-90 cm (with protective side disks)
Safety Device: Motor stop (immediate engine shutdown)
Power Take Off (PTO): Upper: fixed speed, Lower: synchronized with gearbox
Clutch: Conical dry type
Wheels: Optional (400x8)
Engine: Yavuz
Engine Type: 4-stroke gasoline engine
Starting System: Ropc
Cylinder Volume (cm3): 212 (68.0 x 54.0)
Rated Power: 7 HP / 3600 rpm
Rated Torque: 1.26 Kg·m (12.4 N·m) @ 2500 rpm
Engine Oil Capacity: 0.6 l
Fuel Tank Capacity: 3.6 l
Fuel Type: Gasoline
Air Filter: Semi-dry, oil bath, double component
Cooling System: Air
Ignition System: Transistor ignition
Weight: 75 kg

Characteristics / Technical specifications

• Serial No: Yavuz 300
• Transmission and Diff: Manual 3 forward and 1 reverse speed
• Gearbox: Conical and bevel gear box
• Tiller working width: Adjustable 60-90 cm (with protective side disks)
• Safety device: Motor stop (immediate engine shutdown)
• PTO: Upper fixed speed, Lower synchronized with gearbox
• Clutch: Conical dry type
• Optional wheels: 400x8
• Engine brand: Yavuz
• Engine type: 4-stroke gasoline
• Starting system: Ropc
• Cylinder volume: 212 cm3 (68.0 x 54.0)
• Rated power: 7 HP @ 3600 rpm
• Rated torque: 1.26 Kg·m (12.4 N·m) @ 2500 rpm
• Engine oil capacity: 0.6 l
• Fuel tank capacity: 3.6 l
• Fuel type: Gasoline
• Air filter: Semi-dry, oil bath, double component
• Cooling system: Air
• Ignition: Transistor ignition
• Weight: 75 kg
