Gasoline engine walk-behind tiller 50

Product

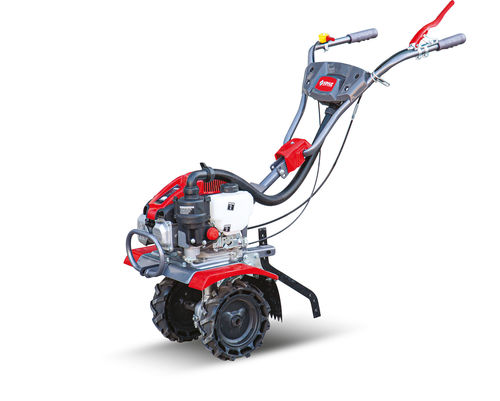

Walk-behind rotary tiller for soil preparation, model YAVUZ 50 equipped with a 4-stroke gasoline engine and manual 1-forward transmission.

Technical specifications

• Serial No: Yavuz 50
• Transmission: Manual, 1 forward
• Gearbox: Conical and bevel gear box
• Tiller working width: Adjustable 50-80 cm (with protective side disks)
• Engine: YAVUZ 4-stroke gasoline engine, 139 cc
• Rated power: 4.023 HP / 3600 rpm
• Rated torque: 1.26 Kg-M (12.4 N-m) @ 2500 rpm
• Weight: 40 kg

Detailed specifications

• Serial No: Yavuz 50
• Transmission and Diff: Manual 1 forward
• Gearbox: Conical and Bevel Gear Box
• Tiller / Working Width: Adjustable 50-80 cm (with protective side disks)
• Safety Device: Motor Stop shuts down the engine immediately
• Power Take Off: Synchronized with gear box
• Clutch: Oil bath
• Wheels: 3-50-4
• Engine: YAVUZ
• Engine Type: 4 Stroke Gasoline Engine
• Starting System: Ropc
• Cylinder Volume: 139 cc (65 x 42)
• Rated Power: 4.023 HP / 3600 rpm
• Rated Torque: 1.26 Kg-M (12.4 N-m) @ 2500 rpm
• Engine Oil Capacity: 0.6 lt
• Fuel Tank Capacity: 1.6 lt
• Fuel Type: Gasoline
• Air Filter: Semi-dry
• Cooling System: Air
• Ignition System: Transistor Ignition
• Weight: 40 kg
